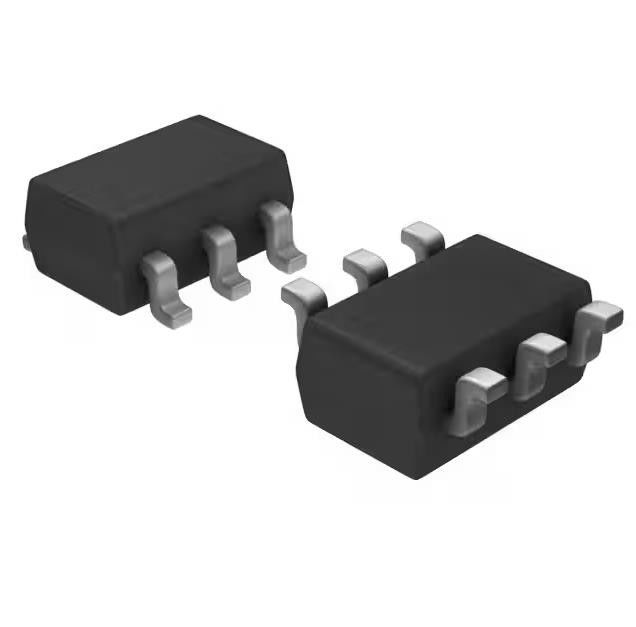

TPS22918TDBVRQ1 Transistor Ic Chip Ic Pwr Switch N-Chan 1:1 Sot23-6
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS22918TDBVRQ1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Switch Type: | General Purpose |
|---|---|---|---|
| Number Of Outputs: | 1 | Ratio - Input:Output: | 1:01 |
| Output Configuration: | High Side | Output Type: | N-Channel |
| Interface: | On/Off | Voltage - Load: | 1V ~ 5.5V |
Product Description
TPS22918TDBVRQ1 Transistor Ic Chip Ic Pwr Switch N-Chan 1:1 Sot23-6
Power Switch/Driver 1:1 N-Channel 2A SOT-23-6
Specifications of TPS22918TDBVRQ1
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Power Distribution Switches, Load Drivers | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100 |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 1V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 2A |
| Rds On (Typ) | 52mOhm |
| Input Type | Non-Inverting |
| Features | Load Discharge, Slew Rate Controlled |
| Fault Protection | - |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23-6 |
| Package / Case | SOT-23-6 |
| Base Product Number | TPS22918 |
Features of TPS22918TDBVRQ1
• AEC-Q100 Qualified
• Integrated single-channel load switch
• Qualified for automotive applications:
– Device Temperature Grade 2: –40°C to +105°C ambient operating temperature range
• Functional safety capable
– Documentation available to aid functional safety system design
• Input voltage range: 1 V to 5.5 V
• Low On-Resistance (RON)
– RON 52 mΩ (typical) at VIN 5 V
– RON 53 mΩ (typical) at VIN 3.3 V
• 2-A Maximum continuous switch current
• Low quiescent current
– 8.3 µA (typical) at VIN 3.3 V
• Low-control input-threshold enables use of 1 V or higher GPIO
• Configurable Quick-Output Discharge (QOD)
• Configurable rise time with CT pin
• Small SOT23-6 package (DBV)
– 2.9 mm × 2.8 mm, 0.95-mm Pitch,
1.45-mm height (with leads)
• ESD Performance tested per AEC Q100
– 2-kV HBM and 750-V CDM
Applications of TPS22918TDBVRQ1
• Automotive electronics
• Infotainment
• Cluster
• ADAS (Advanced Driver Assistance Systems)
Environmental & Export Classifications of TPS22918TDBVRQ1
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
