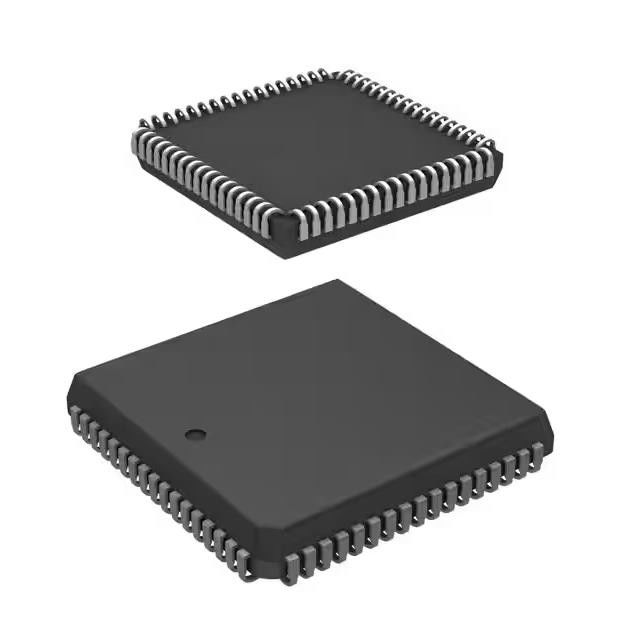

20MHZ Power Management ICs Z8S18020VSC MPU Z180 68PLCC 1 Core 8 Bit
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | Z8S18020VSC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 5-7working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part No: | Z8S18020VSC | Protocol: | RS485 |
|---|---|---|---|
| Interface: | I²C, SPI | Voltage - Supply: | 1.62V ~ 3.63V |
| Current - Supply: | 500µA | Operating Temperature: | -40°C ~ 85°C |
| High Light: | 20MHZ Power Management ICs,Z8S18020VSC,MPU Z180 68PLCC |
||
Product Description
Z8S18020VSC Power Management ICs MPU Z180 20MHZ 68PLCC 1 Core 8-Bit
Z8S180 Microprocessor IC Z180 1 Core, 8-Bit 20MHz 68-PLCC
Not only does the Z8S180/Z8L180 consume less power during normal operations than the previous model,
it offers three modes intended to further reduce power consumption.
Features of Z8S18020VSC
Code Compatible with ZiLOG Z80® CPU
Extended Instructions
Two Chain-Linked DMA Channels
Low Power-Down Modes
On-Chip Interrupt Controllers
Three On-Chip Wait-State Generators
On-Chip Oscillator/Generator
Expanded MMU Addressing (Up to 1 MB)
Clocked Serial I/O Port
Two 16-Bit Counter/Timers
Two Enhanced UARTs (up to 512 Kbps)
Clock Speeds: 10, 20, 33 MHz
Operating Range: 5V (3.3V@ 20 MHz)
Operating Temperature Range: 0°C to +70°C
–40°C to +85°C Extended Temperature Range
Three Packaging Styles
– 68-Pin PLCC
– 64-Pin DIP
– 80-Pin QFP
Specifications of Z8S18020VSC
|
TYPE
|
DESCRIPTION
|
|---|---|
|
Category
|
Integrated Circuits (ICs)
Embedded
Microprocessors
|
|
Mfr
|
Zilog
|
|
Series
|
Z180
|
| Package | Tube |
|
Product Status
|
Obsolete
|
|
Core Processor
|
Z8S180
|
|
Number of Cores/Bus Width
|
1 Core, 8-Bit
|
|
Speed
|
20MHz
|
|
Co-Processors/DSP
|
-
|
|
RAM Controllers
|
DRAM
|
|
Graphics Acceleration
|
No
|
|
Display & Interface Controllers
|
-
|
|
Ethernet
|
-
|
|
SATA
|
-
|
|
USB
|
-
|
|
Voltage - I/O
|
5.0V
|
|
Operating Temperature
|
0°C ~ 70°C (TA)
|
|
Security Features
|
-
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
68-LCC (J-Lead)
|
|
Supplier Device Package
|
68-PLCC
|
|
Additional Interfaces
|
ASCI, CSIO, UART
|
|
Base Product Number
|
Z8S180
|
range (−10 ̊Environmental & Export Classifications
with avck-
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | RoHS non-compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.31.0001 |
Applications of Z8S18020VSC
Portable Appliances
Battery-Operated Devices
Cellular Data Devices
Factory Automation and Process Controls
Additional Resources
| ATTRIBUTE | DESCRIPTION |
|---|---|
| Other Names | 269-3111 |
| Standard Package | 20 |
