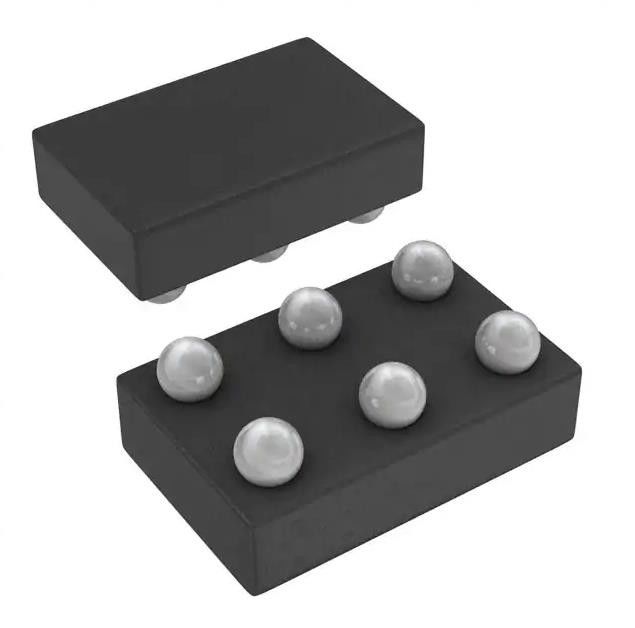

6 DSBGA Power Driver IC 1V-5.5V N Channel 3A TPS22963CYZPT
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS22963CYZPT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Switch Type: | General Purpose |
|---|---|---|---|
| Number Of Outputs: | 1 | Ratio - Input:Output: | 1:1 |
| Output Configuration: | High Side | Output Type: | N-Channel |
| Interface: | On/Off | Voltage - Load: | 1V ~ 5.5V |
| High Light: | 6 DSBGA Power Driver IC,1V Power Driver IC,TPS22963CYZPT |
||
Product Description
TPS22963CYZPT IC Pwr Switch N-Chan 1:1 6dsbga Power Management
Power Switch/Driver 1:1 N-Channel 3A 6-DSBGA
Specifications of TPS22963CYZPT
|
Features of TPS22963CYZPT
• Integrated N-Channel Load Switch
• Input Voltage Range: 1 V to 5.5 V
• Internal Pass-FET Roson = 8 mΩ(Typ)
• Ultra-Low ON-Resistance
- RON = 13 mΩ (Typ) at VIN = 5 V
- RON = 14 mΩ (Typ) at VIN = 3.3 V
- RON = 18 mΩ (Typ) at VIN = 1.8 V
• 3A Maximum Continuous Switch Current
• Reverse Current Protection (When Disabled)
• Low Shutdown Current (760 nA)
• Low Threshold 1.3-V GPIO Control Input
• Controlled Slew-Rate to Avoid Inrush Current
• Quick Output Discharge (TPS22964 only)
• Six Terminal Wafer-Chip-Scale Package (Nominal
Dimensions Shown - See Addendum for Details)
- 0.9 mm x 1.4 mm, 0.5 mm Pitch, 0.5 mm
Height (YZP)
• ESD Performance Tested Per JESD 22
- 2-kV Human-Body Model (A114-B, Class II)
- 500-V Charged-Device Model (C101)
Applications of TPS22963CYZPT
• Smartphones
• Notebook Computer and Ultrabook™
• Tablet PC Computer
• Solid State Drives (SSD)
• DTV/IP Set Top Box
• POS Terminals and Media Gateways
Environmental & Export Classifications of TPS22963CYZPT
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
