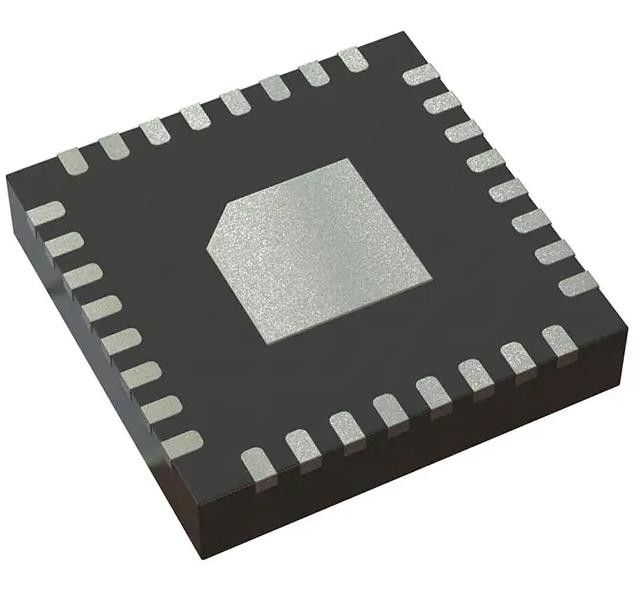

TLV320AIC3105IRHBR Stereo Audio Interface 24 b PCM Audio Interface 32-VQFN (5x5)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TLV320AIC3105IRHBR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Data Interface: | PCM Audio Interface | Resolution (Bits): | 24b |
|---|---|---|---|
| Number Of ADCs / DACs: | 2/2 | S/N Ratio, ADCs / DACs (db) Typ: | 92 / 102 |
| Dynamic Range, ADCs / DACs (db) Typ: | 93 / 97 | Voltage - Supply, Analog: | 2.7V ~ 3.6V |
| Voltage - Supply, Digital: | 1.65V ~ 1.95V | Operating Temperature: | -40°C ~ 85°C |
| High Light: | 32-VQFN Stereo Audio Interface,TLV320AIC3105IRHBR,TLV320AIC3105IRHBR Stereo Audio Interface |
||
Product Description
TLV320AIC3105IRHBR Stereo Audio Interface 24 b PCM Audio Interface 32-VQFN (5x5)
Specifications of TLV320AIC3105IRHBR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| CODECS | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | Stereo Audio |
| Data Interface | PCM Audio Interface |
| Resolution (Bits) | 24 b |
| Number of ADCs / DACs | 2/2 |
| Sigma Delta | Yes |
| S/N Ratio, ADCs / DACs (db) Typ | 92 / 102 |
| Dynamic Range, ADCs / DACs (db) Typ | 93 / 97 |
| Voltage - Supply, Analog | 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 1.65V ~ 1.95V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-VQFN (5x5) |
| Base Product Number | TLV320 |
Features of TLV320AIC3105IRHBR
* Stereo Audio DAC
- 102-dBA Signal-to-Noise Ratio
- 16/20/24/32-Bit Data
- Supports Rates From 8 kHz to 96 kHz
- 3D/Bass/Treble/EQ/De-Emphasis Effects
- Flexible Power Saving Modes andPerformance are Available
* Stereo Audio ADC
- 92-dBA Signal-to-Noise Ratio
- Supports Rates From 8 kHz to 96 kHz
- Digital Signal Processing and Noise FilteringAvailable During Record
* Six Audio Input Pins
- Six Stereo Single-Ended Inputs
* Six Audio Output Drivers
- Stereo Fully Differential or Single-EndedHeadphone Drivers
- Fully Differential Stereo Line Outputs
* Low Power: 14-mW Stereo 48-kHz Playback With3.3-V Analog Supply
* Ultralow-Power Mode with Passive Analog Bypass
* Programmable Input/Output Analog Gains
* Automatic Gain Control (AGC) for RecordProgrammable Microphone Bias Level
* Programmable PLL for Flexible Clock Generation
* I2C Control Bus
* Audio Serial Data Bus Supports 12s, Left/Right-Justified, DSP, and TDM Modes
* Extensive Modular Power Control
* Power Supplies:
- Analog: 2.7 V-3.6 V.
- Digital Core: 1.525 V-1.95 V
- Digital VO: 1.1 V-3.6 V
* Package: 5-mm x 5-mm 32-Pin VQFN
Introduction of TLV320AIC3105IRHBR
• Digital Cameras
• Smart Cellular Phones
