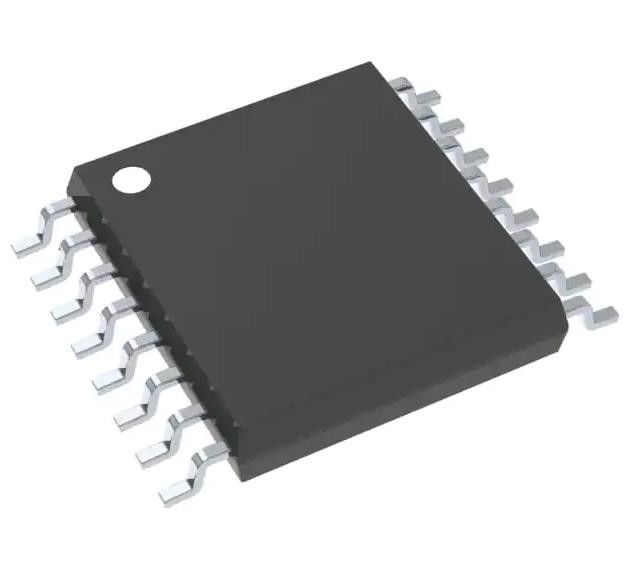

ADC128S052CIMTX/NOPB 12 Bit Analog to Digital Converter 8 Input 1 SAR 16-TSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ADC128S052CIMTX/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Bits: | 12 | Sampling Rate (Per Second): | 500k |
|---|---|---|---|
| Number Of Inputs: | 8 | Input Type: | Single Ended |
| Configuration: | MUX-S/H-ADC | Ratio - S/H:ADC: | 1:01 |
| Number Of A/D Converters: | 1 | Voltage - Supply, Analog: | 2.7V ~ 5.25V |
| High Light: | ADC128S052CIMTX/NOPB,16-TSSOP Analog to Digital Converter,12 Bit Analog to Digital Converter |
||
Product Description
ADC128S052CIMTX/NOPB 12 Bit Analog to Digital Converter 8 Input 1 SAR 16-TSSOP
Specifications of ADC128S052CIMTX/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Analog to Digital Converters (ADC) | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 500k |
| Number of Inputs | 8 |
| Input Type | Single Ended |
| Data Interface | SPI, DSP |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:01 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | Supply |
| Voltage - Supply, Analog | 2.7V ~ 5.25V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Features | - |
| Operating Temperature | -40°C ~ 105°C |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| Mounting Type | Surface Mount |
| Base Product Number | ADC128S052 |
Features of ADC128S052CIMTX/NOPB
* Qualified for Automotive Applications
* AEC-Q100 Qualified With the Following Results:
- Device Temperature Grade 1: -40°C to+125°C Ambient Operating TemperatureRange
* Eight Input Channels
* Variable Power Management
* Independent Analog and Digital Supplies
* Compatible With SPIT, QSPIT,MICROWIREand DSP
* Packaged in 16-Pin TSSOP
* Conversion Rate 200 kSPS to 500 kSPS
* DNL (VA = V = 5 V) + 1.3 or -0.9 LSB(Maximum)
* INL (VA = Vo = 5 V) +1 LSB (Maximum)
* Power Consumption
- 3-V Supply 1.6 mW (Typical)
- 5-V Supply 8.7 mW (Typical)
Applications of ADC128S052CIMTX/NOPB
* Automotive Navigation
* Portable Systems
* Medical Instruments
* Mobile Communications
* Instrumentation and Control Systems
