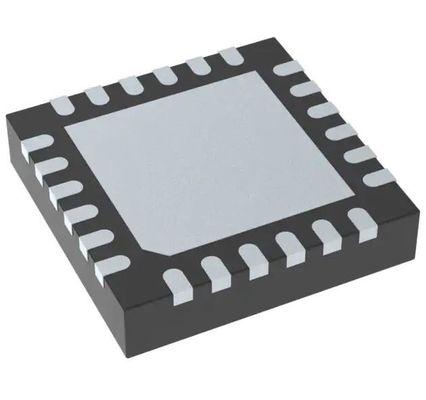

DS110DF111SQE/NOPB Interface 24-WQFN (4x4) 2.375V ~ 2.625V 3V ~ 3.6V
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | DS110DF111SQE/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Interface: | Serial | Voltage - Supply: | 2.375V ~ 2.625V, 3V ~ 3.6V |
|---|---|---|---|
| Package / Case: | 24-WFQFN Exposed Pad | Supplier Device Package: | 24-WQFN (4x4) |
| Mounting Type: | Surface Mount | Base Product Number: | DS110DF111 |
| High Light: | DS110DF111SQE/NOPB Interface,24-WQFN DS110DF111SQE/NOPB Interface,2.625V DS110DF111SQE/NOPB Interface |
||
Product Description
DS110DF111SQE/NOPB Interface 24-WQFN (4x4) 2.375V ~ 2.625V, 3V ~ 3.6V
Specifications of DS110DF111SQE/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Interface | |
| Specialized | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Applications | - |
| Interface | Serial |
| Voltage - Supply | 2.375V ~ 2.625V, 3V ~ 3.6V |
| Package / Case | 24-WFQFN Exposed Pad |
| Supplier Device Package | 24-WQFN (4x4) |
| Mounting Type | Surface Mount |
| Base Product Number | DS110DF111 |
Features of DS110DF111SQE/NOPB
* Pin-Compatible Retimer Family
- DS110DF111 With DFE: 8.5 to 11.3 Gbps
- DS125DF111 With DFE: 9.8 to 12.5 Gbps
* Adaptive CTLE Up to 34 dB Boost at 5.65 GHz
* Self-Tuning 5-Tap DFE
* Raw Equalized and Retimed Data Loopback
* Adjustable Transmit Vop: 600 to 1300 mVp-p
* Settable TX De-Emphasis Driver 0 to -12 dB
* Low Power Consumption: 200 mW/Channel
* Locks to Half, Quarter, and Eighth Data Rates forLegacy Support
* On-Chip Eye Monitor (EOM), PRBS Generator
* Input Signal Detection, CDR LockDetection/Indicator
* Single 3.3-V or 2.5-V +5% Power Supply
* SMBus, EEPROM, or Pin-Based Configuration
* 4.0-mm x 4.0-mm, 24-Pin QFN Package
* Operating Temp Range: -40'C to 85°C
Introduction of DS110DF111SQE/NOPB
* Front Port Optical Interconnects
* SFF-8431
* 10G/1G Ethernet
* CPRI
