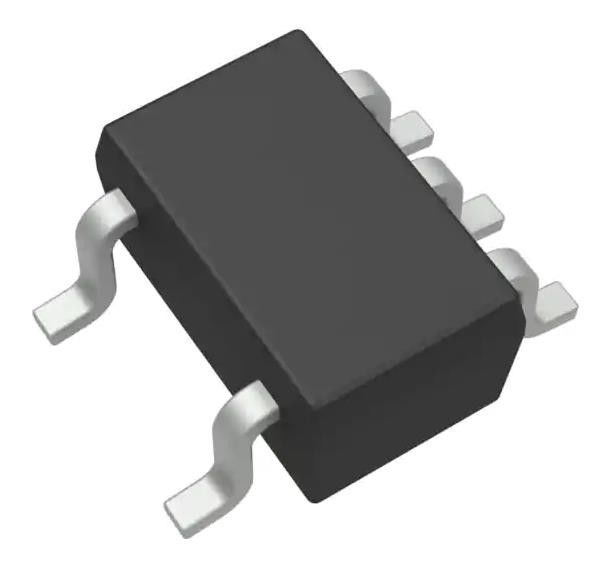

SN74LVC1G08DCKR AND Gate IC 1 Channel SC-70-5 1.65V ~ 5.5V 32mA, 32mA
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SN74LVC1G08DCKR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Circuits: | 1 | Number Of Inputs: | 2 |
|---|---|---|---|
| Voltage - Supply: | 1.65V ~ 5.5V | Current - Quiescent (Max): | 10 µA |
| Current - Output High, Low: | 32mA, 32mA | Max Propagation Delay @ V, Max CL: | 4ns @ 5V, 50pF |
| Operating Temperature: | -40°C ~ 125°C (TA) | Supplier Device Package: | SC-70-5 |
| Highlight: | 32mA SN74LVC1G08DCKR Gate IC,1 Channel SN74LVC1G08DCKR Gate IC,SC-70-5 SN74LVC1G08DCKR Gate IC |
||
Product Description
SN74LVC1G08DCKR AND Gate IC 1 Channel SC-70-5 1.65V ~ 5.5V 32mA, 32mA
Specifications of SN74LVC1G08DCKR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Gates and Inverters | |
| Mfr | Texas Instruments |
| Series | 74LVC |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Logic Type | AND Gate |
| Number of Circuits | 1 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 10 µA |
| Current - Output High, Low | 32mA, 32mA |
| Input Logic Level - Low | - |
| Input Logic Level - High | - |
| Max Propagation Delay @ V, Max CL | 4ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SC-70-5 |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Base Product Number | 74LVC1G08 |
Features of SN74LVC1G08DCKR
• Available in the Ultra Small 0.64-mm2 Package (DPW) With 0.5-mm Pitch
• Supports 5-V VCC Operation
• Inputs Accept Voltages to 5.5 V
• Provides Down Translation to VCC
• Max tpd of 3.6 ns at 3.3 V
• Low Power Consumption, 10-μA Max ICC
• ±24-mA Output Drive at 3.3 V
• Ioff Supports Live Insertion, Partial-Power-Down Mode, and Back Drive Protection
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22
– 2000-V Human-Body Model (A114-A)
– 200-V Machine Model (A115-A)
– 1000-V Charged-Device Model (C101)
Introduction of SN74LVC1G08DCKR
• ATCA Solutions
• Active Noise Cancellation (ANC)
• Barcode Scanner
• Blood Pressure Monitor
• CPAP Machine
• Cable Solutions
• DLP 3D Machine Vision, Hyperspectral Imaging, Optical Networking, and Spectroscopy
• E-Book
• Embedded PC
• Field Transmitter: Temperature or Pressure Sensor
• Fingerprint Biometrics
• HVAC: Heating, Ventilating, and Air Conditioning
• Network-Attached Storage (NAS)
• Server Motherboard and PSU
• Software Defined Radio (SDR)
• TV: High-Definition (HDTV), LCD, and Digital
• Video Communications System
• Wireless Data Access Card, Headset, Keyboard,Mouse, and LAN Card
• X-ray: Baggage Scanner, Medical, and Dental
