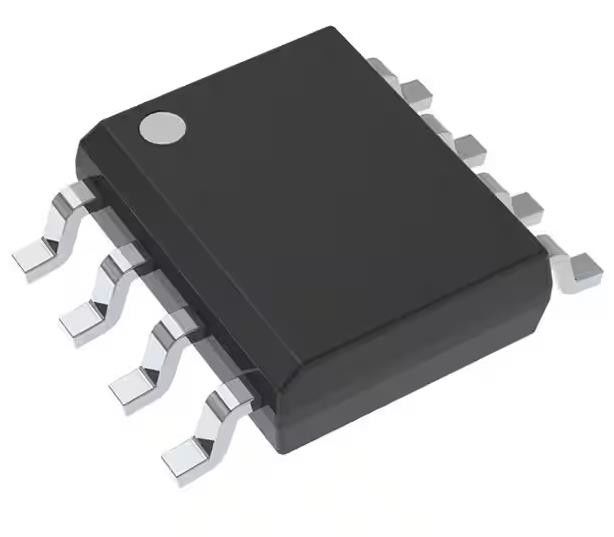

SN65HVD1782DR 1/1 Transceiver Half RS422, RS485 8-SOIC 3.15V ~ 5.5V
Product Details:
Place of Origin: | original |
Brand Name: | original |
Certification: | original |
Model Number: | SN65HVD1782DR |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 |
---|---|
Price: | negotiation |
Packaging Details: | carton box |
Delivery Time: | 1-3working days |
Payment Terms: | T/T |
Supply Ability: | 100,000 |
Detail Information |
|||
Type: | Transceiver | Protocol: | RS422, RS485 |
---|---|---|---|
Number Of Drivers/Receivers: | 1/1 | Duplex: | Half |
Receiver Hysteresis: | 50 MV | Data Rate: | 10Mbps |
Voltage - Supply: | 3.15V ~ 5.5V | Operating Temperature: | -40°C ~ 125°C |
High Light: | 8-SOIC SN65HVD1782DR Transceiver,RS422 RS485 Transceiver,SN65HVD1782DR Transceiver |
Product Description
SN65HVD1782DR 1/1 Transceiver Half RS422, RS485 8-SOIC 3.15V ~ 5.5V
Specifications of SN65HVD1782DR
TYPE | DESCRIPTION |
Category | Integrated Circuits (ICs) |
Interface | |
Drivers, Receivers, Transceivers | |
Mfr | Texas Instruments |
Series | - |
Package | Tape & Reel (TR) |
Cut Tape (CT) | |
Digi-Reel® | |
Type | Transceiver |
Protocol | RS422, RS485 |
Number of Drivers/Receivers | 1/1 |
Duplex | Half |
Receiver Hysteresis | 50 mV |
Data Rate | 10Mbps |
Voltage - Supply | 3.15V ~ 5.5V |
Operating Temperature | -40°C ~ 125°C |
Mounting Type | Surface Mount |
Package / Case | 8-SOIC (0.154", 3.90mm Width) |
Supplier Device Package | 8-SOIC |
Base Product Number | 65HVD1782 |
Features of SN65HVD1782DR
• Bus-Pin Fault Protection to:
– > ±70 V (SN65HVD1780, SN65HVD1781)
– > ±30 V (SN65HVD1782)
• Operation With 3.3-V to 5-V Supply Range
• ±16-kV HBM Protection on Bus Pins
• Reduced Unit Load for Up to 320 Nodes
• Failsafe Receiver for Open-Circuit, Short-Circuit,and Idle-Bus Conditions
• Low Power Consumption
– Low Standby Supply Current, 1 µA Maximum
– ICC 4-mA Quiescent Current During Operation
• Pin-Compatible With Industry-Standard SN75176
• Signaling Rates of 115 kbps, 1 Mbps, and up to 10 Mbps
• Create a Custom Design using the SN65HVD178x with the WEBENCH® Power Designer
Introduction of SN65HVD1782DR
• HVAC Networks
• Security Electronics
• Building Automation
• Telecommunication Equipment
• Motion Control
• Industrial Networks
