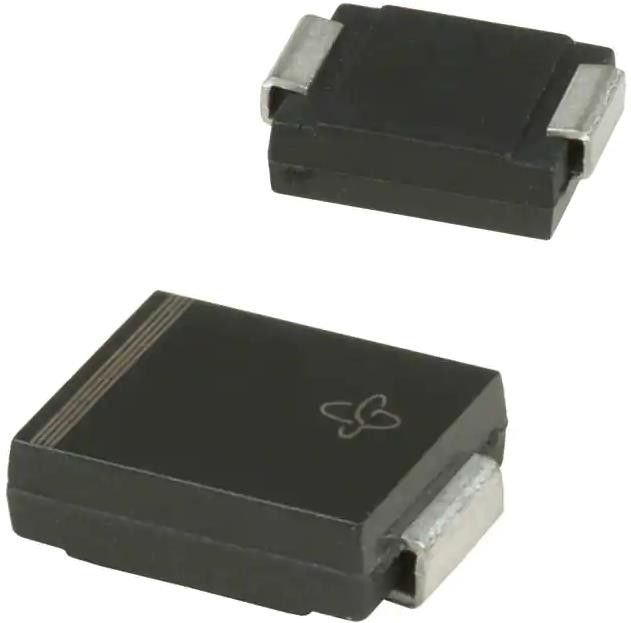

S5J-E3/57T Diode 600 V 5A Surface Mount DO-214AB SMC Electronic Components
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | S5J-E3/57T |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage - DC Reverse (Vr) (Max): | 600 V | Current - Average Rectified (Io): | 5A |
|---|---|---|---|
| Voltage - Forward (Vf) (Max) @ If: | 1.15 V @ 5 A | Speed: | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr): | 2.5 µs | Current - Reverse Leakage @ Vr: | 10 µA @ 600 V |
| Capacitance @ Vr, F: | 40pF @ 4V, 1MHz | Operating Temperature - Junction: | -55°C ~ 150°C |
| High Light: | S5J-E3/57T,S5J-E3/57T Electronic Components,Diode Electronic Components |
||
Product Description
S5J-E3/57T Diode 600 V 5A Surface Mount DO-214AB (SMC) Electronic Components
Specifications of S5J-E3/57T
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Single Diodes | |
| Mfr | Vishay General Semiconductor - Diodes Division |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Current - Average Rectified (Io) | 5A |
| Voltage - Forward (Vf) (Max) @ If | 1.15 V @ 5 A |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 2.5 µs |
| Current - Reverse Leakage @ Vr | 10 µA @ 600 V |
| Capacitance @ Vr, F | 40pF @ 4V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AB, SMC |
| Supplier Device Package | DO-214AB (SMC) |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Base Product Number | S5J |
S5J-E3/57T
• Low profile package
• Ideal for automated placement
• Glass passivated pellet chip junction
• Low forward voltage drop
• Low leakage current
• High forward surge capability
• Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
• AEC-Q101 qualified available
- Automotive ordering code: base P/NHE3 or P/NHM3
S5J-E3/57T
For use in general purpose rectification of power supplies, inverters, converters and freewheeling diodes for consumer, automotive and telecommunication.
Environmental & Export Classifications of S5J-E3/57T
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
