NCP163AMX300TBG Linear Voltage Regulator IC Positive Fixed 1
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | NCP163AMX300TBG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Type: | Fixed | Number Of Regulators: | 1 |
|---|---|---|---|
| Voltage - Input (Max): | 5.5V | Voltage - Output (Min/Fixed): | 3V |
| Voltage Dropout (Max): | 0.155V @ 250mA | Current - Output: | 250mA |
| Current - Quiescent (Iq): | 20 µA | PSRR: | 91dB ~ 60dB (100Hz ~ 100kHz) |
Product Description
NCP163AMX300TBG Linear Voltage Regulator IC Positive Fixed 1
Specifications of NCP163AMX300TBG
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.155V @ 250mA |
| Current - Output | 250mA |
| Current - Quiescent (Iq) | 20 µA |
| PSRR | 91dB ~ 60dB (100Hz ~ 100kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |

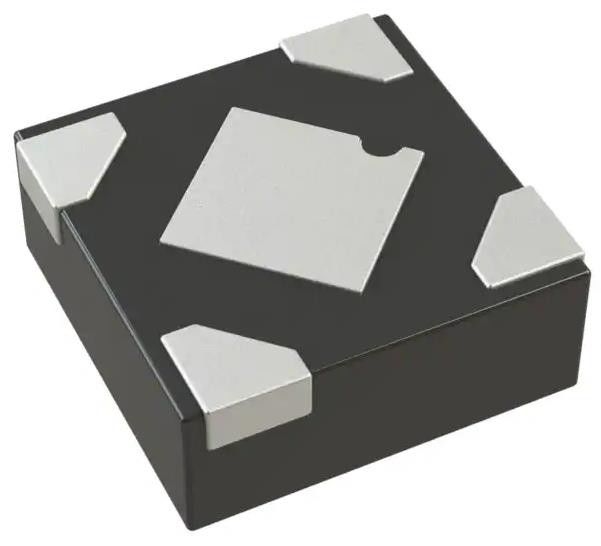

| Package / Case | 4-XDFN Exposed Pad |
| Supplier Device Package | 4-XDFN (1x1) |
| Base Product Number | NCP163 |
Features of NCP163AMX300TBG
• Operating Input Voltage Range: 2.2 V to 5.5 V
• Available in Fixed Voltage Option: 1.2 V to 5.3 V
• ±2% Accuracy Over Load/Temperature
• Ultra Low Quiescent Current Typ. 12 A
• Standby Current: Typ. 0.1 A
• Very Low Dropout: 80 mV at 250 mA
• Ultra High PSRR: Typ. 92 dB at 20 mA, f = 1 kHz
• Ultra Low Noise: 6.5 VRMS
• Stable with a 1 F Small Case Size Ceramic Capacitors
• Available in − WLCSP4: 0.64 mm x 0.64 mm x 0.33 mm
− WLCSP4: 0.64 mm x 0.64 mm x 0.4 mm
− XDFN4: 1 mm x 1 mm x 0.4 mm
− SOT23−5: 2.9 mm x 2.8 mm x 1.2 mm
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
Applications of NCP163AMX300TBG
• Battery−powered Equipment
• Wireless LAN Devices
• Smartphones, Tablets
• Cameras, DVRs, STB and Camcorders
Environmental & Export Classifications of NCP163AMX300TBG
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
