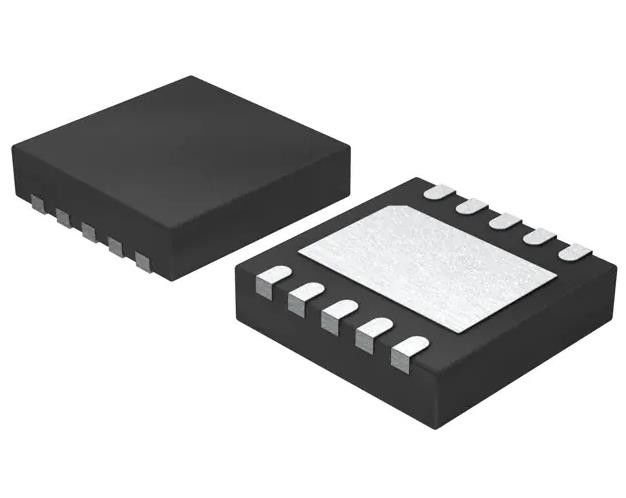

LM10011SD/NOPB Controller, 4-bit or 6-bit VID Voltage Regulator IC 1 Output
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM10011SD/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Applications: | Controller, 4-bit Or 6-bit VID | Voltage - Input: | 2.97V ~ 5.5V |
|---|---|---|---|
| Number Of Outputs: | 1 | Voltage - Output: | Adjustable |
| Operating Temperature: | -40°C ~ 125°C | Mounting Type: | Surface Mount |
| Package / Case: | 10-WFDFN Exposed Pad | Supplier Device Package: | 10-SON (3x3) |
Product Description
LM10011SD/NOPB Controller, 4-bit or 6-bit VID Voltage Regulator IC 1 Output
Specifications of LM10011SD/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Special Purpose Regulators | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Applications | Controller, 4-bit or 6-bit VID |
| Voltage - Input | 2.97V ~ 5.5V |
| Number of Outputs | 1 |
| Voltage - Output | Adjustable |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 10-WFDFN Exposed Pad |
| Supplier Device Package | 10-SON (3x3) |
| Base Product Number | LM10011 |
Features of LM10011SD/NOPB
* 1.0% Output Current Accuracy (0°C to 100°C)
* 1.25% Output Current Accuracy(-40°C to 125°C)Input Voltage Range: 2.97 Vto 5.5V
* Pin Selectable VID Format (6- or 4-bit)
* 16 Selectable Star-Up Currents
* Precision Enable to Support Custom UVLO
* SON-103-mm×3-mm Footprint,0.5-mm Pitch
* Footprint Compatible with the LM10010
Descriptions of LM10011SD/NOPB
* Broadband, Networking, and Wireless Communications
* Noteboak Power Solutions
* Portable Instruments
* Battery-Powered Equipment
* Powering Digital Loads with a 6-bit or 4-bit,4-PinVID Interface
Environmental & Export Classifications of LM10011SD/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
