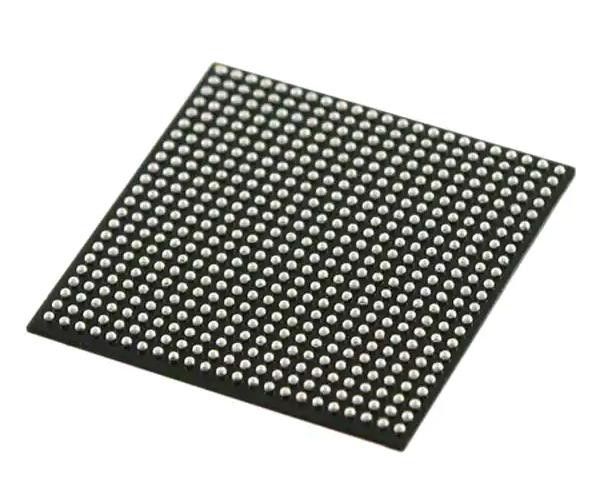

EP3C55F484C7N Cyclone® III Field Programmable Gate Array (FPGA) IC 327 2396160
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | EP3C55F484C7N |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of LABs/CLBs: | 3491 | Number Of Logic Elements/Cells: | 55856 |
|---|---|---|---|
| Total RAM Bits: | 2396160 | Number Of I/O: | 327 |
| Voltage - Supply: | 1.15V ~ 1.25V | Operating Temperature: | 0°C ~ 85°C (TJ) |
Product Description
EP3C55F484C7N Cyclone® III Field Programmable Gate Array (FPGA) IC 327 2396160
Specifications of EP3C55F484C7N
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| FPGAs (Field Programmable Gate Array) | |
| Mfr | Intel |
| Series | Cyclone® III |
| Package | Tray |
| Number of LABs/CLBs | 3491 |
| Number of Logic Elements/Cells | 55856 |
| Total RAM Bits | 2396160 |
| Number of I/O | 327 |
| Voltage - Supply | 1.15V ~ 1.25V |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C ~ 85°C (TJ) |
| Package / Case | 484-BGA |
| Supplier Device Package | 484-FBGA (23x23) |
| Base Product Number | EP3C55 |
Features of EP3C55F484C7N
■ Configuration security using advanced encryption standard (AES) with 256-bit volatile key
■ Routing architecture optimized for design separation flow with the Quartus® II software
■ Design separation flow achieves both physical and functional isolation between design partitions
■ Ability to disable external JTAG port
■ Error Detection (ED) Cycle Indicator to core
■ Provides a pass or fail indicator at every ED cycle
■ Provides visibility over intentional or unintentional change of configuration random access memory (CRAM) bits
■ Ability to clear contents of the FPGA logic, CRAM, embedded memory, and AES key
■ Internal oscillator enables system monitor and health check capabilities
Descriptions of EP3C55F484C7N
Cyclone® III device family offers a unique combination of high functionality, low power and low cost. Based on Taiwan Semiconductor Manufacturing Company (TSMC) low-power (LP) process technology, silicon optimizations and software features to minimize power consumption, Cyclone III device family provides the ideal solution for your high-volume, low-power, and cost-sensitive applications.
Environmental & Export Classifications of EP3C55F484C7N
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991D |
| HTSUS | 8542.39.0001 |
