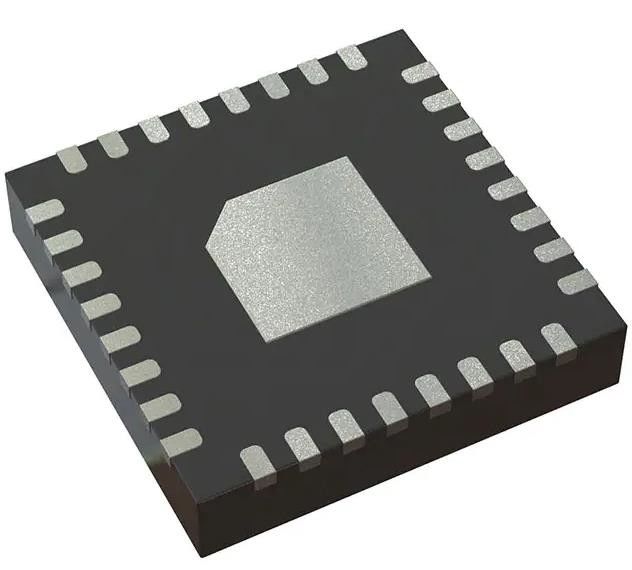

PCM5242RHBR DAC, Audio 32 b 384k I²S, PCM 32-VQFN (5x5)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | PCM5242RHBR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Amplifier Type: | ADC, Audio | Sampling Rate (Per Second): | 384k |
|---|---|---|---|
| Number Of Channels: | 2 | Resolution (Bits): | 32 B |
| Voltage - Supply: | 1.65V ~ 1.95V, 3V ~ 3.46V | Data Interface: | I²S, PCM |
| Voltage Supply Source: | Analog And Digital | Operating Temperature: | -25°C ~ 85°C |
Product Description
PCM5242RHBR DAC, Audio 32 b 384k I²S, PCM 32-VQFN (5x5)
Specifications of PCM5242RHBR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| ADCs/DACs - Special Purpose | |
| Mfr | Texas Instruments |
| Series | DirectPath™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | DAC, Audio |
| Number of Channels | 2 |
| Resolution (Bits) | 32 b |
| Sampling Rate (Per Second) | 384k |
| Data Interface | I²S, PCM |
| Voltage Supply Source | Analog and Digital |
| Voltage - Supply | 1.65V ~ 1.95V, 3V ~ 3.46V |
| Operating Temperature | -25°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-VQFN (5x5) |
| Base Product Number | PCM5242 |
Features of PCM5242RHBR
* Differential DirectPath rw Ground Biased Outputs
* Market-Leading Low Out-of-Band Noise
* Selectable Digital-Filter Latency and Performance
* No DC Blocking Capacitors Required
* Integrated Negative Charge Pump
* Intelligent Muting System; Soft Up or Down Rampand Analog Mute for 120dB Mute SNR
* Integrated High-Performance Audio PLL WithBCK Reference to Generate SCK Internally
* Accepts 16-, 24-, and 32-Bit Audio Data
* PCM Data Formats: 12S, Left-Justified, Right-Justified,TDM
* SPI or 12C Control
* Software or Hardware Configuration
* Automatic Power-Save Mode When LRCK AndBCK Are Deactivated
* 1.8V or 3.3V Failsafe LVCMOS Digital Inputs
* Single Supply Operation:
- 3.3V Analog, 1.8V or 3.3V Digital
* Integrated Power-On Reset
* Small 32-terminal QFN Package
Applications of PCM5242RHBR
• HiFi Smartphone
• A/V Receivers
• DVD, BD Players
• HDTV Receivers
Environmental & Export Classifications of PCM5242RHBR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
