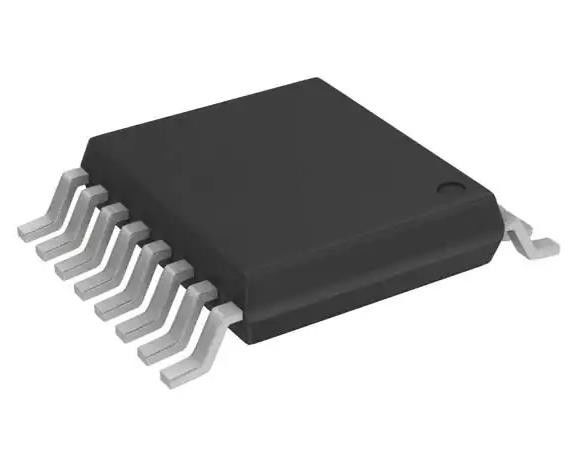

TC74VHC595FT Shift Shift Electronic IC Chips Register 1 Element 8 Bit 16-TSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TC74VHC595FT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Logic Type: | Shift Register | Output Type: | Tri-State |
|---|---|---|---|
| Number Of Elements: | 1 | Number Of Bits Per Element: | 8 |
| Function: | Serial To Parallel | Voltage - Supply: | 2V ~ 5.5V |
| Operating Temperature: | -40°C ~ 85°C | Mounting Type: | Surface Mount |
Product Description
TC74VHC595FT Shift Shift Electronic IC Chips Register 1 Element 8 Bit 16-TSSOP
Specifications of TC74VHC595FT
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Shift Registers | |
| Mfr | Toshiba Semiconductor and Storage |
| Series | TC74VHC |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Logic Type | Shift Register |
| Output Type | Tri-State |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Function | Serial to Parallel |
| Voltage - Supply | 2V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| Base Product Number | 74VHC595 |
Features of TC74VHC595FT
• High speed: fmax = 185 MHz (typ.) at VCC = 5 V
• Low power dissipation: ICC = 4 μA (max) at Ta = 25°C
• High noise immunity: VNIH = VNIL = 28% VCC (min)
• Power down protection is provided on all inputs.
• Balanced propagation delays: tpLH ∼− tpHL
• Wide operating voltage range: VCC (opr) = 2 V to 5.5 V
• Low noise: VOLP = 1.0 V (max)
• Pin and function compatible with 74ALS595
Applications of TC74VHC595FT
The TC74VHC595 is an advanced high speed 8-BIT SHIFT REGISTER/LATCH fabricated with silicon gate C2MOS technology.
Environmental & Export Classifications of TC74VHC595FT
| ATTRIBUTE | DESCRIPTION |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
