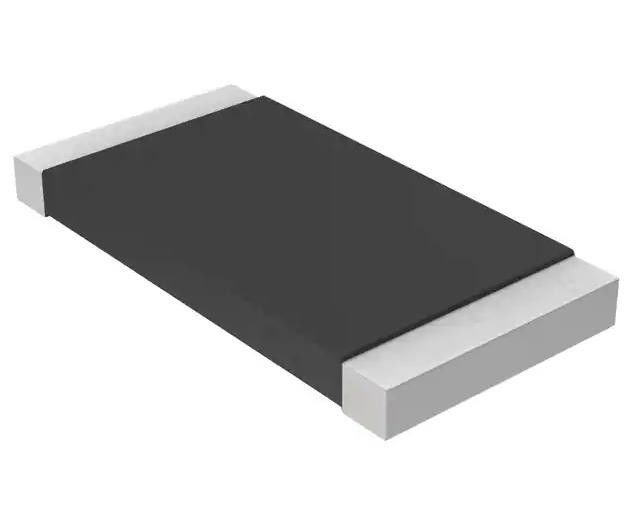

WSL2512R0100FEA 10 mOhms ±1% 1W Chip Resistor Anti-Sulfur Automotive Current Sense
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | WSL2512R0100FEA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Features: | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding | Resistance: | 10 MOhms |
|---|---|---|---|
| Tolerance: | ±1% | Power (Watts): | 1W |
| Composition: | Metal Element | Temperature Coefficient: | ±75ppm/°C |
| Operating Temperature: | -65°C ~ 170°C | Supplier Device Package: | 2512 |
Product Description
WSL2512R0100FEA 10 mOhms ±1% 1W Chip Resistor Anti-Sulfur Automotive Current Sense
Specifications of WSL2512R0100FEA
| TYPE | DESCRIPTION |
| Category | Resistors |
| Chip Resistor - Surface Mount | |
| Mfr | Vishay Dale |
| Series | WSL |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Resistance | 10 mOhms |
| Tolerance | ±1% |
| Power (Watts) | 1W |
| Composition | Metal Element |
| Features | Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding |
| Temperature Coefficient | ±75ppm/°C |
| Operating Temperature | -65°C ~ 170°C |
| Package / Case | 2512 (6432 Metric) |
| Supplier Device Package | 2512 |
| Ratings | AEC-Q200 |
| Size / Dimension | 0.250" L x 0.125" W (6.35mm x 3.18mm) |
| Height - Seated (Max) | 0.035" (0.89mm) |
Features of RC0603FR-07243KL
• All welded construction of the Power Metal Strip® resistors are ideal for all types of current sensing, voltage division and pulse applications
• Proprietary processing technique produces extremely low resistance values (down to 0.0005 Ω)
• Sulfur resistance by construction that is unaffected by high sulfur environments
• Very low inductance 0.5 nH to 5 nH
• Low thermal EMF (< 3 μV/°C)
• AEC-Q200 qualified (1)
Environmental & Export Classifications of WSL2512R0100FEA
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8533.21.0030 |
