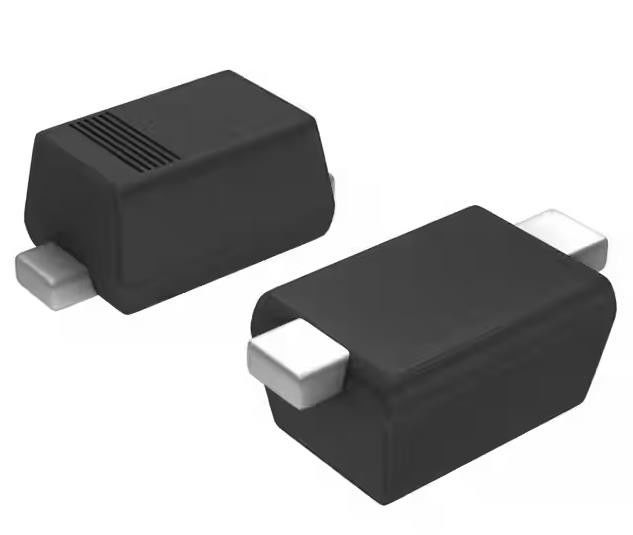

BZX585-B3V3,115 Zener Diode 3.3 V 300 mW ±2% Surface Mount SOD-523
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | BZX585-B3V3,115 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage - Zener (Nom) (Vz): | 3.3 V | Tolerance: | ±2% |
|---|---|---|---|
| Power - Max: | 300 MW | Impedance (Max) (Zzt): | 95 Ohms |
| Current - Reverse Leakage @ Vr: | 5 µA @ 1 V | Voltage - Forward (Vf) (Max) @ If: | 1.1 V @ 100 MA |
| Operating Temperature: | -65°C ~ 150°C | Package / Case: | SC-79, SOD-523 |
Product Description
BZX585-B3V3,115 Zener Diode 3.3 V 300 mW ±2% Surface Mount SOD-523
Specifications of BZX585-B3V3,115
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Zener | |
| Single Zener Diodes | |
| Mfr | Nexperia USA Inc. |
| Series | Automotive, AEC-Q101, PXXXXSX |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Voltage - Zener (Nom) (Vz) | 3.3 V |
| Tolerance | ±2% |
| Power - Max | 300 mW |
| Impedance (Max) (Zzt) | 95 Ohms |
| Current - Reverse Leakage @ Vr | 5 µA @ 1 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 100 mA |
| Operating Temperature | -65°C ~ 150°C |
| Mounting Type | Surface Mount |
| Package / Case | SC-79, SOD-523 |
| Supplier Device Package | SOD-523 |
| Base Product Number | BZX585-B3V3 |
Features of BZX585-B3V3,115
* Non-repetitive peak reverse power dissipation: 40 W
* Wide working voltage range: nominal 2.4 V to 75 V (E24 range)
* Total power dissipation: 300 mW
* Two tolerance series: 2 % and 5 %
* AEC-Q101 qualified
* Low differential resistance
Applications of BZX585-B3V3,115
* General regulation functions
Environmental & Export Classifications of BZX585-B3V3,115
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0050 |
