TLE8242-2L Integrated Circuit Chip Current Source Regulator Low Side PG-LQFP-64-4
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TLE8242-2L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Function: | Current Source | Sensing Method: | Low-Side |
|---|---|---|---|
| Voltage - Input: | 5.5V ~ 42V | Operating Temperature: | -40°C ~ 150°C |
| Mounting Type: | Surface Mount | Package / Case: | 64-LQFP |
| Supplier Device Package: | PG-LQFP-64-4 | Base Product Number: | TLE82422 |
| High Light: | TLE8242-2L integrated circuit chip,PG-LQFP-64-4 integrated circuit chip |
||
Product Description

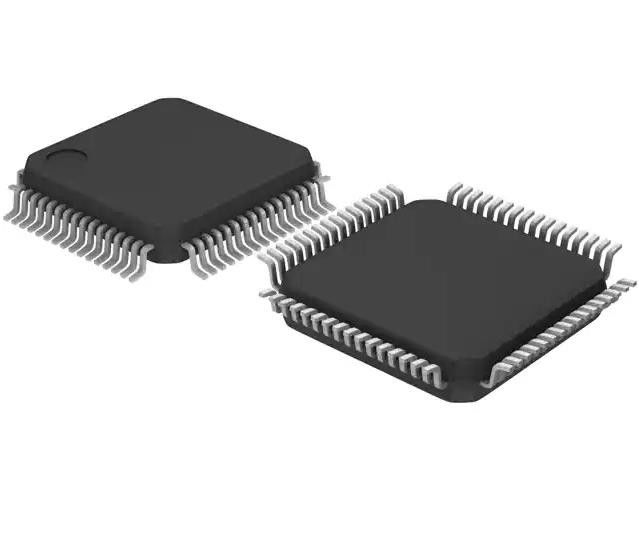

TLE8242-2L Current Source Regulator Low-Side PG-LQFP-64-4
Specifications of TLE8242-2L
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Current Regulation/Management | |
| Mfr | Infineon Technologies |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Function | Current Source |
| Sensing Method | Low-Side |
| Accuracy | - |
| Voltage - Input | 5.5V ~ 42V |
| Current - Output | - |
| Operating Temperature | -40°C ~ 150°C |
| Mounting Type | Surface Mount |
| Package / Case | 64-LQFP |
| Supplier Device Package | PG-LQFP-64-4 |
| Base Product Number | TLE82422 |
Features of TLE8242-2L
• Low side constant current control pre-driver integrated circuit
• Eight independent channels
• Output current programmable with 11 bit resolution
– Current range = 0 to 1.2A (typ) with a 0.2 Ω sense resistor
– Resolution = 0.78125 mA/bit (typ) with a 0.2 Ω sense resistor
– +/- 2% full scale error over temperature when autozero is used
• Programmable PWM frequency via SPI from approximately 10 Hz to 4 kHz (typ)
• Programmable KP and KI coefficients for the PI controller for each channel
Introductions of TLE8242-2L
• Variable Force Solenoids (e.g. automatic transmission solenoids)
• Other constant current solenoids
– Idle Air Control
– Exhaust Gas Recirculation
– Vapor Management Valve
– Suspension Control
Environmental & Export Classifications of TLE8242-2L
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 5A991B1 |
| HTSUS | 8542.39.0001 |
