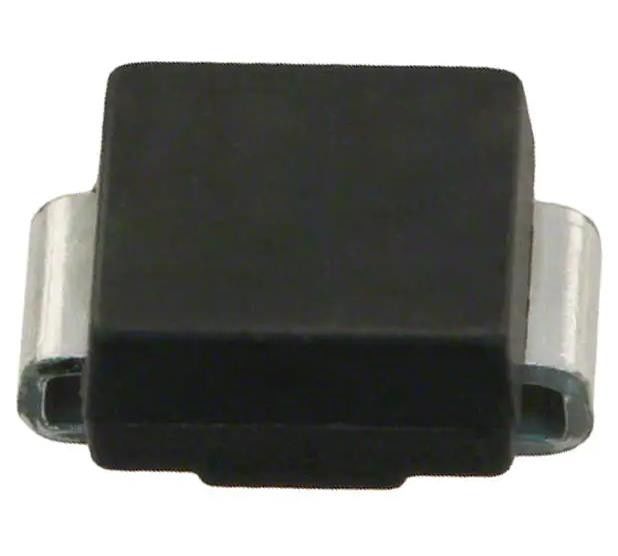

SM6T15AY 27.2V Clamp 147A (8/20µs) Ipp Tvs Diode Surface Mount SMB (DO-214AA)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SM6T15AY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Unidirectional Channels: | 1 | Voltage - Reverse Standoff (Typ): | 12.8V |
|---|---|---|---|
| Voltage - Breakdown (Min): | 14.3V | Voltage - Clamping (Max) @ Ipp: | 27.2V |
| Current - Peak Pulse (10/1000µs): | 147A (8/20µs) | Power - Peak Pulse: | 600W |
| Applications: | Automotive | Operating Temperature: | -55°C ~ 150°C (TJ) |
Product Description
SM6T15AY 27.2V Clamp 147A (8/20µs) Ipp Tvs Diode Surface Mount SMB (DO-214AA)
Specifications of SM6T15AY
| TYPE | DESCRIPTION |
| Category | Circuit Protection |
| Transient Voltage Suppressors (TVS) | |
| TVS Diodes | |
| Mfr | STMicroelectronics |
| Series | Automotive, AEC-Q101, SM6TY, TRANSIL™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Type | Zener |
| Unidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 12.8V |
| Voltage - Breakdown (Min) | 14.3V |
| Voltage - Clamping (Max) @ Ipp | 27.2V |
| Current - Peak Pulse (10/1000µs) | 147A (8/20µs) |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
| Applications | Automotive |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | SMB (DO-214AA) |
| Base Product Number | SM6T15 |
Features of SM6T15AY
• AEC-Q101 qualified
• Peak pulse power: 600 W (10/1000 μs) and 4 kW (8/20 μs)
• Stand-off voltage range from 5 V to 188 V
• Unidirectional and bidirectional types
• Low leakage current: 0.2 μA at 25 °C and 1 μA at 85 °C
• Operating Tj max: 150 °C
• High power capability at Tj max.: up to 515 W (10/1000 µs)
• Lead finishing: matte tin plating
Applications of SM6T15AY
The SM6TY series are designed to protect sensitive automotive circuits against surges defined in ISO 7637-2 and against electrostatic discharges according to ISO 10605.
Environmental & Export Classifications of SM6T15AY
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
