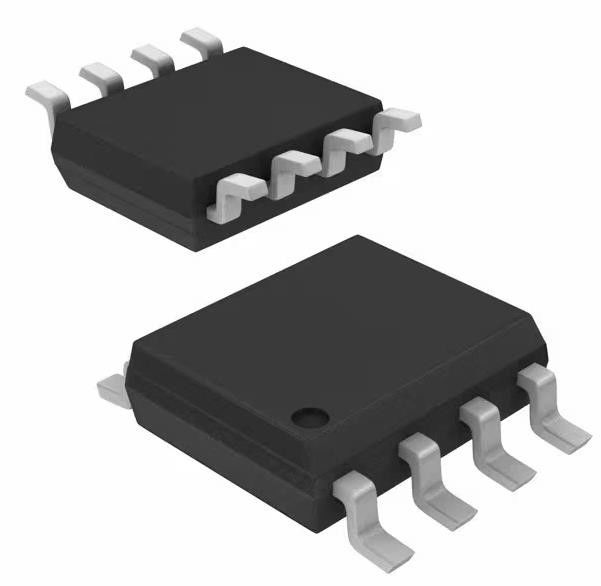

HCPL-063L-500E Optoisolator 15MBd Open Collector Schottky Clamped 3750Vrms 10kV/µs
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | HCPL-063L-500E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Channels: | 2 | Inputs - Side 1/Side 2: | 2/0 |
|---|---|---|---|
| Voltage - Isolation: | 3750Vrms | Common Mode Transient Immunity (Min): | 10kV/µs |
| Output Type: | Open Collector, Schottky Clamped | Current - Output / Channel: | 50 MA |
| Data Rate: | 15MBd | Propagation Delay TpLH / TpHL (Max): | 75ns, 75ns |
Product Description
HCPL-063L-500E Optoisolator 15MBd Open Collector Schottky Clamped 3750Vrms 10kV/µs
Specifications of HCPL-063L-500E
| TYPE | DESCRIPTION |
| Category | Isolators |
| Optoisolators | |
| Logic Output Optoisolators | |
| Mfr | Broadcom Limited |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Number of Channels | 2 |
| Inputs - Side 1/Side 2 | 2/0 |
| Voltage - Isolation | 3750Vrms |
| Common Mode Transient Immunity (Min) | 10kV/µs |
| Input Type | DC |
| Output Type | Open Collector, Schottky Clamped |
| Current - Output / Channel | 50 mA |
| Data Rate | 15MBd |
| Propagation Delay tpLH / tpHL (Max) | 75ns, 75ns |
| Rise / Fall Time (Typ) | 24ns, 10ns |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Current - DC Forward (If) (Max) | 15mA |
| Voltage - Supply | 2.7V ~ 3.6V, 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SO Tall |
| Base Product Number | HCPL-063 |
Features of HCPL-063L-500E
* 3.3V/5V dual-supply voltages
* Low power consumption
* 15 kV/µs minimum Common Mode Rejection (CMR) at VCM = 1000V
* High speed: 15 MBd typical
* LVTTL/LVCMOS compatible
* Low input current capability: 5 mA
* Guaranteed AC and DC performance over temperature: –40°C to +85°C
* Available in 8-pin DIP, SOIC-8
* Strobable output (single-channel products only)
* Safety approvals: UL, CSA, IEC/EN/DIN EN 60747-5-5
Decriptions of HCPL-063L-500E
* Isolated line receiver
* Computer-peripheral interfaces
* Microprocessor system interfaces
* Digital isolation for A/D, D/A conversion
* Switching power supply
* Instrument input/output isolation
* Ground loop elimination
* Pulse transformer replacement
* Field buses
Environmental & Export Classifications of HCPL-063L-500E
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.49.8000 |
