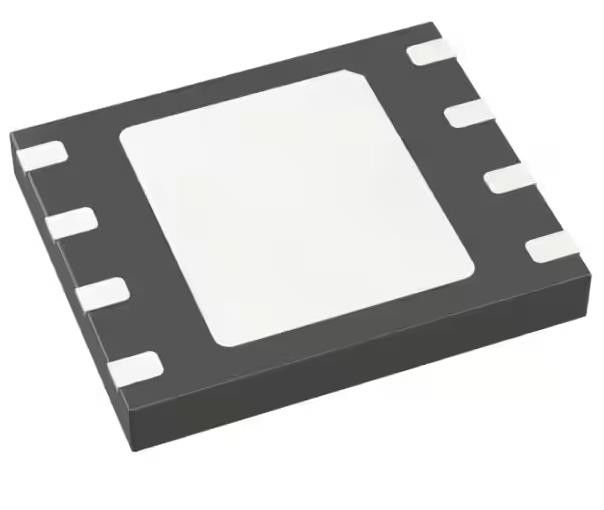

MX25L51245GZ2I-08G FLASH - NOR Memory IC 512Mbit SPI - Quad I/O QPI DTR 166 MHz
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MX25L51245GZ2I-08G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Memory Type: | Non-Volatile | Memory Format: | FLASH |
|---|---|---|---|
| Technology: | FLASH - NOR | Memory Size: | 512Mbit |
| Memory Organization: | 64M X 8 | Memory Interface: | SPI - Quad I/O, QPI, DTR |
| Clock Frequency: | 166 MHz | Write Cycle Time - Word, Page: | 60µs, 750µs |
Product Description
MX25L51245GZ2I-08G FLASH - NOR Memory IC 512Mbit SPI - Quad I/O QPI DTR 166 MHz
Specifications of MX25L51245GZ2I-08G
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Memory | |
| Memory | |
| Mfr | Macronix |
| Series | MXSMIO™ |
| Package | Tray |
| Memory Type | Non-Volatile |
| Memory Format | FLASH |
| Technology | FLASH - NOR |
| Memory Size | 512Mbit |
| Memory Organization | 64M x 8 |
| Memory Interface | SPI - Quad I/O, QPI, DTR |
| Clock Frequency | 166 MHz |
| Write Cycle Time - Word, Page | 60µs, 750µs |
| Voltage - Supply | 2.7V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-WDFN Exposed Pad |
| Supplier Device Package | 8-WSON (8x6) |
| Base Product Number | MX25L51245 |
Features of MX25L51245GZ2I-08G
• Supports Serial Peripheral Interface -- Mode 0 and Mode 3
• Single Power Supply Operation
- 2.7 to 3.6 volts for read, erase, and program operations
• 536,870,912 x 1 bit structure
or 268,435,456 x 2 bits (two I/O mode) structure
or 134,217,728 x 4 bits (four I/O mode) structure
• Protocol Support
- Single I/O, Dual I/O and Quad I/O
• Latch-up protected to 100mA from -1V to Vcc +1V
• Fast read for SPI mode
- Supports clock frequencies up to 166MHz for all protocols
- Supports Fast Read, 2READ, DREAD, 4READ, QREAD instructions
- Supports DTR (Double Transfer Rate) Mode
- Configurable dummy cycle number for fast read operation
• Supports Performance Enhance Mode - XIP (execute-in-place)
Decriptions of MX25L51245GZ2I-08G
MX25L51245G is 512Mb bits Serial NOR Flash memory, which is configured as 67,108,864 x 8 internally. When it is in two or four I/O mode, the structure becomes 268,435,456 bits x 2 or 134,217,728 bits x 4. MX25L51245G feature a serial peripheral interface and software protocol allowing operation on a simple 3-wire bus while it is in single I/O mode. The three bus signals are a clock input (SCLK), a serial data input (SI), and a serial data output (SO). Serial access to the device is enabled by CS# input.
Environmental & Export Classifications of MX25L51245GZ2I-08G
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991B1A |
| HTSUS | 8542.32.0071 |
