LSF0102DCUR Voltage Level Translator Bidirectional 1 Circuit 2 Channel 8-VSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LSF0102DCUR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Features: | Auto-Direction Sensing | Translator Type: | Voltage Level |
|---|---|---|---|
| Channel Type: | Bidirectional | Number Of Circuits: | 1 |
| Channels Per Circuit: | 2 | Voltage - VCCA: | 0 V ~ 5 V |
| Output Type: | Open Drain, Push-Pull | Operating Temperature: | -40°C ~ 125°C (TA) |
| High Light: | LSF0102DCUR,LSF0102DCUR Voltage Level Translator |
||
Product Description

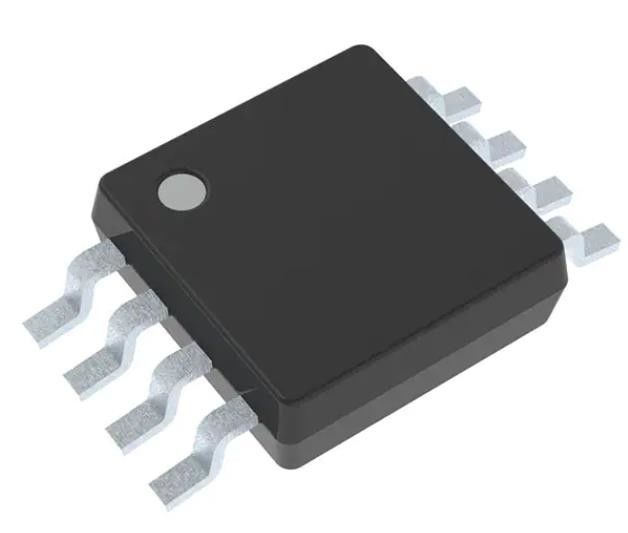

LSF0102DCUR Voltage Level Translator Bidirectional 1 Circuit 2 Channel 8-VSSOP
Specifications of LSF0102DCUR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Translators, Level Shifters | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Translator Type | Voltage Level |
| Channel Type | Bidirectional |
| Number of Circuits | 1 |
| Channels per Circuit | 2 |
| Voltage - VCCA | 0 V ~ 5 V |
| Voltage - VCCB | 0 V ~ 5 V |
| Input Signal | - |
| Output Signal | - |
| Output Type | Open Drain, Push-Pull |
| Data Rate | - |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Features | Auto-Direction Sensing |
| Mounting Type | Surface Mount |
| Package / Case | 8-VFSOP (0.091", 2.30mm Width) |
| Supplier Device Package | 8-VSSOP |
| Base Product Number | LSF0102 |
Features of LSF0102DCUR
• Provides bidirectional voltage translation with no direction pin
• Supports up to 100-MHz up translation and greater than 100-MHz down translation at ≤ 30 pF capacitive load and up To 40-MHz up or down translation at 50 pF capacitive load
• Allows bidirectional voltage-level translation between
– 0.95 V ↔ 1.8/2.5/3.3/5 V
– 1.2 V ↔ 1.8/2.5/3.3/5 V
– 1.8 V ↔ 2.5/3.3/5 V
– 2.5 V ↔ 3.3/5 V
– 3.3 V ↔ 5 V
• Low standby current
• 5-V tolerance I/O port to support TTL
• Low RON provides less signal distortion
• High-impedance I/O pins for EN = Low
• Flow-through pinout for easy PCB trace routing
• Latch-up performance >100 mA per JESD 17
• –40°C to 125°C operating temperature range
Applications of LSF0102DCUR
• GPIO, MDIO, PMBus, SMBus, SDIO, UART, I2C, and other interfaces in telecom infrastructure
• Enterprise systems
• Communications equipment
• Personal electronics
• Industrial applications
Environmental & Export Classifications of LSF0102DCUR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
