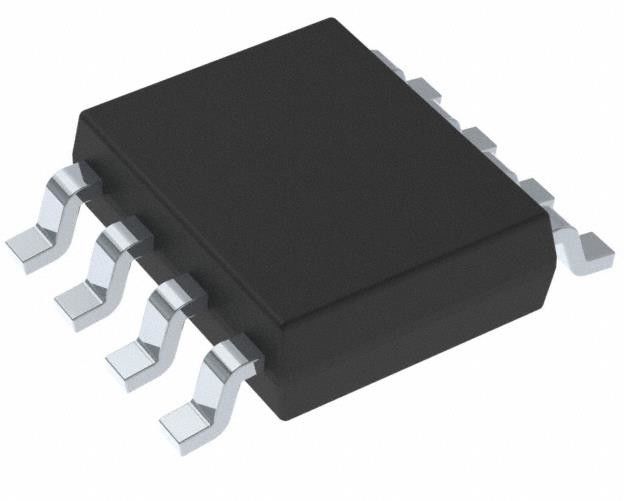

TPS5430MDDAREP Buck Switching Regulator IC Positive Adjustable 1.221V 1 Output 3A
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS5430MDDAREP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Function: | Step-Down | Output Configuration: | Positive |
|---|---|---|---|
| Topology: | Buck | Output Type: | Adjustable |
| Number Of Outputs: | 1 | Voltage - Input (Min): | 5.5V |
| Voltage - Input (Max): | 36V | Voltage - Output (Min/Fixed): | 1.221V |
| High Light: | TPS5430MDDAREP,Positive Adjustable Buck Switching Regulator IC,TPS5430MDDAREP Buck Switching Regulator IC |
||
Product Description
TPS5430MDDAREP Buck Switching Regulator IC Positive Adjustable 1.221V 1 Output 3A
IC REG BUCK ADJ 3A 8SOPWR
Specifications of TPS5430MDDAREP
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | SWIFT™ |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 5.5V |
| Voltage - Input (Max) | 36V |
| Voltage - Output (Min/Fixed) | 1.221V |
| Voltage - Output (Max) | 32.04V |
| Current - Output | 3A |
| Frequency - Switching | 500kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerSOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SO PowerPad |
| Base Product Number | TPS5430 |
Features of TPS5430MDDAREP
* Wide Input Voltage Range: 5.5 V to 36 V
* Up to 3-A Continuous (4-A Peak) OutputCurrent
* High Efficiency up to 95% Enabled by 110-mQIntegrated MOSFET Switch
* Wide Output Voltage Range: Adjustable Downto 1.22 V With 1.5% Initial Accuracy
* Internal Compensation Minimizes ExternalParts Count
* Fixed 500-kHz Switching Frequency for SmallFilter Size
* lmproved Line Regulation and TransientResponse by Input Voltage Feed Forward
* System Protected by Overcurrent LimitingOvervoltage Protection, and ThermalShutdown
* -55°C to 125°c Operating JunctionTemperature Range
* Available in Small Thermally Enhanced 8-PinSOIC PowerPADTM Package
Applications of TPS5430MDDAREP
• Industrial and Car Audio Power Supplies
• Battery Chargers, High-Power LED Supplies
• 12-V/24-V Distributed Power Systems
Environmental & Export Classifications of TPS5430MDDAREP
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
