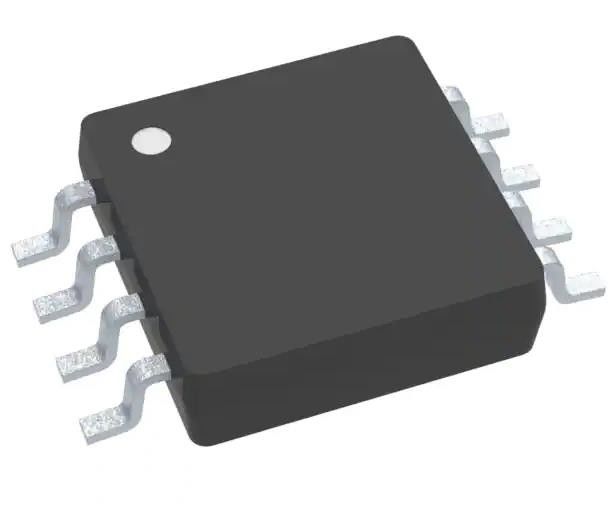

ADS8320EB / 2K5 16 Bit Analog To Digital Converter 1 Input 1 SAR 8-VSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ADS8320EB/2K5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Number Of Bits: | 16 | Sampling Rate (Per Second): | 100k |
|---|---|---|---|
| Number Of Inputs: | 1 | Input Type: | Pseudo-Differential, Single Ended |
| Data Interface: | SPI | Ratio - S/H:ADC: | 1:01 |
| High Light: | ADS8320EB/2K5,16 Bit Analog to Digital Converter,8-VSSOP Analog to Digital Converter |
||
Product Description
ADS8320EB / 2K5 16 Bit Analog to Digital Converter 1 Input 1 SAR 8-VSSOP
10 Ohms ±1% 1W Chip Resistor 2512 (6432 Metric) Automotive AEC-Q200 Thick Film
Specifications of ADS8320EB/2K5
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Analog to Digital Converters (ADC) | |
| Mfr | Texas Instruments |
| Series | microPOWER™ |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Number of Bits | 16 |
| Sampling Rate (Per Second) | 100k |
| Number of Inputs | 1 |
| Input Type | Pseudo-Differential, Single Ended |
| Data Interface | SPI |
| Configuration | S/H-ADC |
| Ratio - S/H:ADC | 1:01 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | External |
| Voltage - Supply, Analog | 2.7V ~ 3.3V, 5V |
| Voltage - Supply, Digital | 2.7V ~ 3.3V, 5V |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-VSSOP |
| Mounting Type | Surface Mount |
| Base Product Number | ADS8320 |
Features of ADS8320EB/2K5
• 100-kHz Sampling Rate
• microPower:
– 1.8 mW at 100 kHz and 2.7 V
– 0.3 mW at 10 kHz and 2.7 V
• Power Down: 3 µA (Maximum)
• 8-Pin VSSOP Package
• Pin-Compatible to ADS7816 and ADS7822
• Serial (SPI™/SSI) Interface
Applications of ADS8320EB/2K5
• Battery-Operated Systems
• Remote Data Acquisition
• Isolated Data Acquisition
• Simultaneous Sampling, Multichannel Systems
• Industrial Controls
• Robotics
• Vibration Analysis
Environmental & Export Classifications of ADS8320EB/2K5
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
