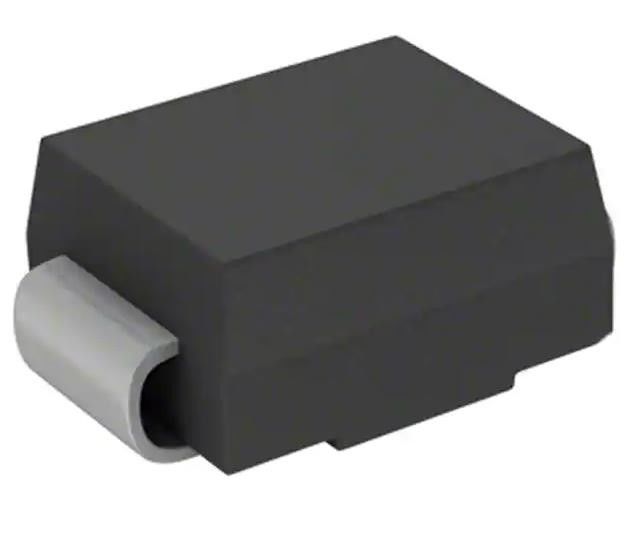

ES3AB-13-F Electronic Components Single Diodes 50 V 3A Surface Mount SMB
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ES3AB-13-F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Technology: | Standard | Voltage - DC Reverse (Vr) (Max): | 50 V |
|---|---|---|---|
| Current - Average Rectified (Io): | 3A | Voltage - Forward (Vf) (Max) @ If: | 900 MV @ 3 A |
| Speed: | Fast Recovery =< 500ns, > 200mA (Io) | Reverse Recovery Time (trr): | 25 Ns |
| Current - Reverse Leakage @ Vr: | 10 µA @ 50 V | Capacitance @ Vr, F: | 45pF @ 4V, 1MHz |
| Operating Temperature - Junction: | -55°C ~ 150°C | Mounting Type: | Surface Mount |
| High Light: | ES3AB-13-F,ES3AB-13-F Electronic Components,Single Diodes 50 V 3A |
||
Product Description
ES3AB-13-F Electronic Components Diode 50 V 3A Surface Mount SMB
DIODE GEN PURP 50V 3A SMB
Specifications of ES3AB-13-F
| TYPE | DESCRIPTION |
| Category | Single Diodes |
| Mfr | Diodes Incorporated |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 50 V |
| Current - Average Rectified (Io) | 3A |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 3 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 25 ns |
| Current - Reverse Leakage @ Vr | 10 µA @ 50 V |
| Capacitance @ Vr, F | 45pF @ 4V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AA, SMB |
| Supplier Device Package | SMB |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Base Product Number | ES3A |
Features of ES3AB-13-F
* Glass Passivated Die Construction
* Super-Fast Recovery Time for High Efficiency
* Surge Overload Rating to 100A Peak
* Ideally Suited for Automated Assembly
* Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” Device (Note 3)
Applications of ES3AB-13-F
* Case: SMB/SMC
* Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0
* Moisture Sensitivity: Level 1 per J-STD-020
* Terminals: Lead Free Plating (Matte Tin Finish). Solderable per MIL-STD-202, Method 208
* Polarity: Cathode Band or Cathode Notch
* SMB Weight: 0.093 grams (Approximate)
* SMC Weight: 0.21 grams (Approximate)
Environmental & Export Classifications of ES3AB-13-F
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Affected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
