SD05C.TCT TVS Diode 14.5V Clamp 24A (8/20µS) Ipp Surface Mount SOD-323
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SD05C.TCT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Type: | Zener | Bidirectional Channels: | 1 |
|---|---|---|---|
| Voltage - Reverse Standoff (Typ): | 5V (Max) | Voltage - Breakdown (Min): | 6V |
| Voltage - Clamping (Max) @ Ipp: | 14.5V | Current - Peak Pulse (10/1000µs): | 24A (8/20µs) |
| Power - Peak Pulse: | 350W | Capacitance @ Frequency: | 200pF @ 1MHz |
| High Light: | SD05C.TCT,SD05C.TCT TVS Diode,Surface Mount TVS Diode |
||
Product Description

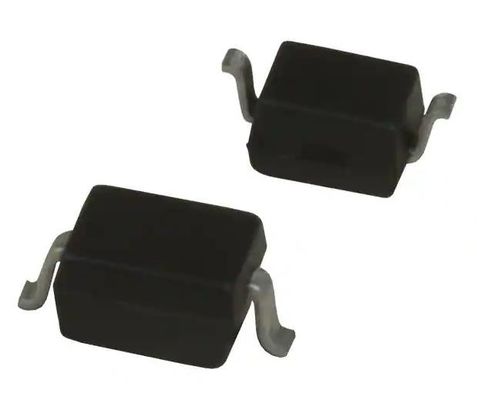

SD05C.TCT Tvs Diode 14.5V Clamp 24A (8/20µs) Ipp Surface Mount SOD-323
TVS DIODE 5VWM 14.5VC SOD323
Specifications of SD05C.TCT
| TYPE | DESCRIPTION |
| Category | TVS Diodes |
| Mfr | Semtech Corporation |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 14.5V |
| Current - Peak Pulse (10/1000µs) | 24A (8/20µs) |
| Power - Peak Pulse | 350W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 200pF @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SC-76, SOD-323 |
| Supplier Device Package | SOD-323 |
| Base Product Number | SD05 |
Features of SD05C.TCT
* 350 Watts peak pulse power (t = 8/20ps)
* Transient protection for data lines to
- IEC 61000-4-2(ESD) 15kV (air),8kV (contact)
- IEC 61000-4-4(EFT) 40A(5/50ns)
- IEC 61000-4-5 (Lightning) 24A (8/20ps)
* Small package for use in portable electronics
* Suitable replacement for MLV's in ESD protection applications
* Protects one l/0 or power line
* Low clamping voltage
* Working voltages: 5V,12V,15V,24V
* Low leakage current
* Solid-state silicon avalanche technology
Applications of SD05C.TCT
* Cell Phone Handsets and Accessories
* Microprocessor based equipment
* Personal Digital Assistants (PDA's)
* Notebooks,Desktops, and Servers
* Portable Instrumentation
* Pagers
* Peripherals
Environmental & Export Classifications of SD05C.TCT
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
