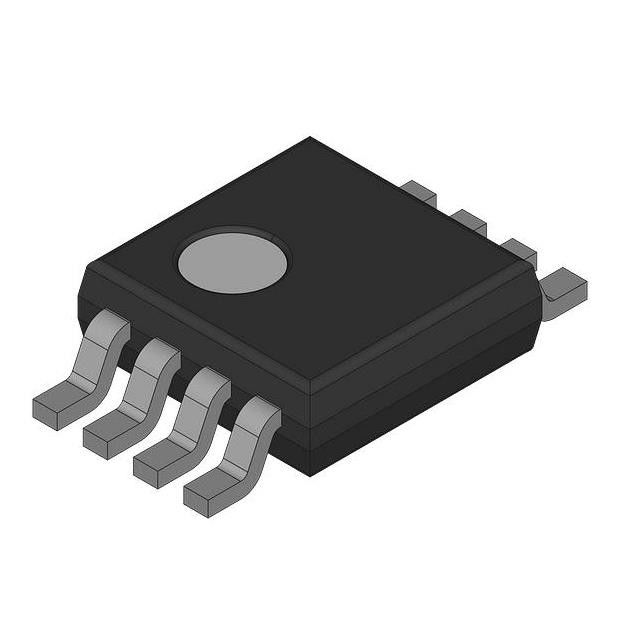

LMC555CMMX/NOPB Single IC With 555 Type Timer/Oscillator 3MHz 8-VSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LMC555CMMX/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 3-5ddays |
| Payment Terms: | T/T |
| Supply Ability: | 1000 |
|
Detail Information |
|||
| Type: | 555 Type, Timer/Oscillator (Single) | Frequency: | 3MHz |
|---|---|---|---|
| Voltage - Supply: | 1.5V ~ 15V | Current - Supply: | 150 µA |
| Operating Temperature: | -40°C ~ 85°C | Package / Case: | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
Product Description
LMC555CMMX/NOPB Single IC With 555 Type Timer/Oscillator 3MHz 8-VSSOP
LMC555 - 555 TIMER WITH LOW POWE
Specifications of LMC555CMMX/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Programmable Timers and Oscillators | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Type | 555 Type, Timer/Oscillator (Single) |
| Count | - |
| Frequency | 3MHz |
| Voltage - Supply | 1.5V ~ 15V |
| Current - Supply | 150 µA |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Supplier Device Package | 8-VSSOP |
| Mounting Type | Surface Mount |
| Base Product Number | LMC555 |
Features of LMC555CMMX/NOPB
• Industry's Fastest Astable Frequency of 3 MHz
• Available in Industry's Smallest 8-Bump DSBGA Package (1.43mm × 1.41mm)
• Less Than 1 mW Typical Power Dissipation at 5 V Supply
• 1.5 V Supply Operating Voltage Ensured
• Output Fully Compatible With TTL and CMOS Logic at 5 V Supply
• Tested to −10 mA, 50 mA Output Current Levels
• Reduced Supply Current Spikes During Output Transitions
• Extremely Low Reset, Trigger, and Threshold Currents
• Excellent Temperature Stability
• Pin-for-Pin Compatible With 555 Series of Timers
Applications of LMC555CMMX/NOPB
• Precision Timing
• Pulse Generation
• Sequential Timing
• Time Delay Generation
• Pulse Width Modulation
• Pulse Position Modulation
• Linear Ramp Generators
Environmental & Export Classifications of LMC555CMMX/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
