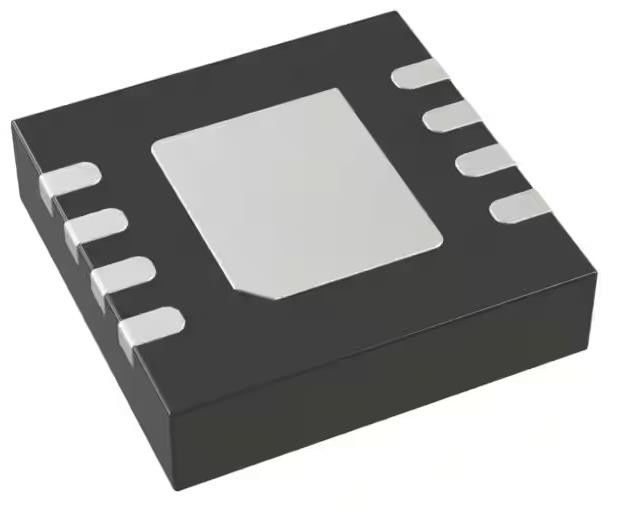

ADP1706ACPZ-1.1-R7 Linear Voltage Regulator IC 1 Output 1A 8-LFCSP (3x3)
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ADP1706ACPZ-1.1-R7 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of Regulators: | 1 | Voltage - Input (Max): | 5.5V |
|---|---|---|---|
| Voltage - Output (Min/Fixed): | 1.1V | Voltage Dropout (Max): | 0.6V @ 1A |
| Current - Output: | 1A | Current - Supply (Max): | 1.55 MA |
| High Light: | ADP1706ACPZ-1.1-R7 Linear Voltage Regulator,8-LFCSP Linear Voltage Regulator |
||
Product Description
ADP1706ACPZ-1.1-R7 Linear Voltage Regulator IC 1 Output 1A 8-LFCSP (3x3)
ADP1706ACPZ-1.1-R7 IC REG LINEAR 1.1V 1A 8LFCSP
Specifications of ADP1706ACPZ-1.1-R7
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Voltage Regulators - Linear | |
| Mfr | Analog Devices Inc. |
| Series | - |
| Package | Tape & Reel (TR) |
| Product Status | Obsolete |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.1V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.6V @ 1A |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 390 µA |
| Current - Supply (Max) | 1.55 mA |
| PSRR | - |
| Control Features | Enable, Soft Start |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-WFDFN Exposed Pad, CSP |
| Supplier Device Package | 8-LFCSP (3x3) |
| Base Product Number | ADP1706 |
Features of ADP1706ACPZ-1.1-R7
► Maximum output current: 1 A
► Input voltage range: 2.5 V to 5.5 V
► Low shutdown current: <1 µA
► Low dropout voltage: 345 mV at 1 A load
► Initial accuracy: ±1%
► Accuracy over line, load, and temperature: ±2.5%
► 16 fixed output voltage options with soft start
► 0.75 V to 3.3 V (ADP1706)
► 16 fixed output voltage options with tracking
► 0.75 V to 3.3 V (ADP1707)
► Adjustable output voltage option
► 0.8 V to 5.0 V (ADP1708)
► Stable with small 4.7 µF ceramic output capacitor
► Excellent load/line transient response
► Current limit and thermal overload protection
► Logic-controlled enable
► Available in an 8-lead, exposed paddle SOIC and a 3 mm × 3 mm, 8-lead exposed paddle LFCSP
Applications of ADP1706ACPZ-1.1-R7
► Notebook computers
► Memory components
► Telecommunications equipment
► Network equipment
► DSP/FPGA/microprocessor supplies
► Instrumentation equipment/data acquisition systems
Environmental & Export Classifications of ADP1706ACPZ-1.1-R7
| ATTRIBUTE | DESCRIPTION |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
