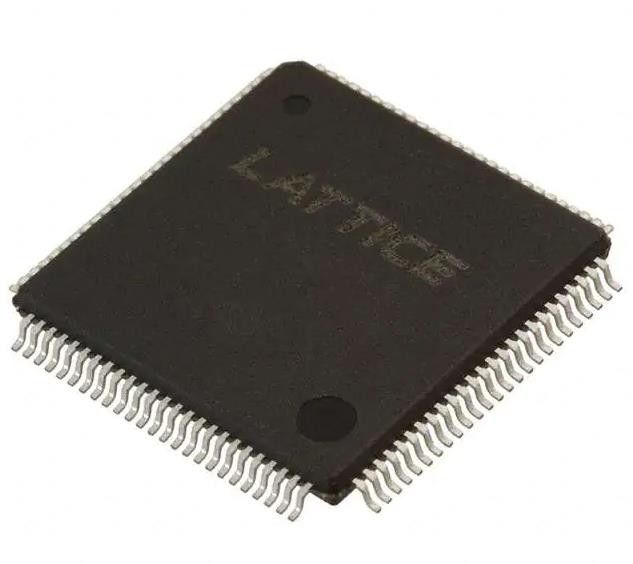

ISPLSI1032E-70LTN Complex Programmable Logic Devices IC 128MC 15NS 100TQFP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ISPLSI1032E-70LTN |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Programmable Type: | In System Programmable | Delay Time Tpd(1) Max: | 15 Ns |
|---|---|---|---|
| Voltage Supply - Internal: | 4.5V ~ 5.5V | Number Of Logic Elements/Blocks: | 32 |
| Number Of Macrocells: | 128 | Number Of Gates: | 6000 |
| Number Of I/O: | 64 | Operating Temperature: | -40°C ~ 85°C (TA) |
| High Light: | ISPLSI1032E-70LTN Complex Programmable Logic Devices,100TQFP Programmable Logic Devices |
||
Product Description
ISPLSI1032E-70LTN Complex Programmable Logic Devices IC 128MC 15NS 100TQFP
ISPLSI 1032E-70LTNI IC CPLD 128MC 15NS 100TQFP
Specifications of ISPLSI1032E-70LTN
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| CPLDs (Complex Programmable Logic Devices) | |
| Mfr | Lattice Semiconductor Corporation |
| Series | ispLSI® 1000E |
| Package | Tray |
| Product Status | Obsolete |
| Programmable Type | In System Programmable |
| Delay Time tpd(1) Max | 15 ns |
| Voltage Supply - Internal | 4.5V ~ 5.5V |
| Number of Logic Elements/Blocks | 32 |
| Number of Macrocells | 128 |
| Number of Gates | 6000 |
| Number of I/O | 64 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 100-LQFP |
| Supplier Device Package | 100-TQFP (14x14) |
| Base Product Number | ISPLSI 1032E |
Features of ISPLSI1032E-70LTN
• HIGH DENSITY PROGRAMMABLE LOGIC
— 6000 PLD Gates
— 64 I/O Pins, Eight Dedicated Inputs
— 192 Registers
— High Speed Global Interconnect
— Wide Input Gating for Fast Counters, State Machines, Address Decoders, etc.
— Small Logic Block Size for Random Logic
• HIGH PERFORMANCE E2CMOS® TECHNOLOGY
— fmax = 125 MHz Maximum Operating Frequency
— tpd = 7.5 ns Propagation Delay
— TTL Compatible Inputs and Outputs
— Electrically Erasable and Reprogrammable
— Non-Volatile
— 100% Tested at Time of Manufacture
— Unused Product Term Shutdown Saves Power
• IN-SYSTEM PROGRAMMABLE
— In-System Programmable (ISP™) 5V Only
— Increased Manufacturing Yields, Reduced Time-toMarket and Improved Product Quality
— Reprogram Soldered Devices for Faster Prototyping
• OFFERS THE EASE OF USE AND FAST SYSTEM SPEED OF PLDs WITH THE DENSITY AND FLEXIBILITY OF FIELD PROGRAMMABLE GATE ARRAYS
— Complete Programmable Device Can Combine Glue Logic and Structured Designs
— Enhanced Pin Locking Capability
— Four Dedicated Clock Input Pins
— Synchronous and Asynchronous Clocks
— Programmable Output Slew Rate Control to Minimize Switching Noise
— Flexible Pin Placement
— Optimized Global Routing Pool Provides Global Interconnectivity
— Lead-Free Package Options
Descriptions of ISPLSI1032E-70LTN
The ispLSI 1032E is a High Density Programmable Logic Device containing 192 Registers, 64 Universal I/O pins,eight Dedicated Input pins, four Dedicated Clock Input pins and a Global Routing Pool (GRP).
Environmental & Export Classifications of ISPLSI1032E-70LTN
| ATTRIBUTE | DESCRIPTION |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
