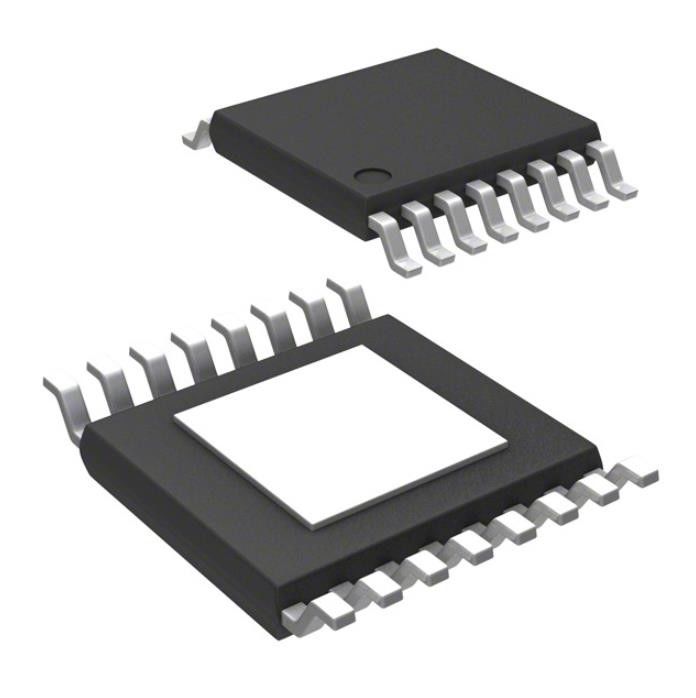

TPS27SA08CPWPR Dip Ic Sockets 36-V, 8-M, 1-Ch Smart High-Side
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS27SA08CPWPR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Switch Type: | General Purpose |
|---|---|---|---|
| Number Of Outputs: | 1 | Ratio - Input:Output: | 0.042361111 |
| Output Configuration: | High Side | Output Type: | N-Channel |
| Interface: | On/Off | Voltage - Load: | 8V ~ 36V |
Product Description
TPS27SA08CPWPR Dip Ic Sockets 36-V, 8-M, 1-Ch Smart High-Side
Power Switch/Driver 1:1 N-Channel 10A 16-HTSSOP
Specifications of TPS27SA08CPWPR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Power Distribution Switches, Load Drivers | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Switch Type | General Purpose |
| Number of Outputs | 1 |
| Ratio - Input:Output | 0.042361111 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 8V ~ 36V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 10A |
| Rds On (Typ) | 9mOhm |
| Input Type | Non-Inverting |
| Features | Slew Rate Controlled, Status Flag |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Short Circuit, UVLO |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-HTSSOP |
| Package / Case | 16-PowerTSSOP (0.173", 4.40mm Width) |
| Base Product Number | TPS27SA08 |
Features of TPS27SA08CPWPR
• Single-channel smart high-side switch with a typical 9-mΩ RON (TJ = 25°C)
• Improve reliability through overcurrent protection:
– Current limit threshold nominally at 20 A
– Current limiting (clamping) on reaching the threshold
• Robust integrated output protection:
– Integrated thermal protection
– Protection against short to ground and supply
– Automatic FET switch-on during reverse supply
– Automatic shut off if loss of supply and ground occurs
– Integrated output clamp to demagnetize inductive loads
– Configurable fault handling
• Analog sense output can be configured to accurately measure:
– Load current
– Supply voltage
– Device temperature
• Provides FLT indication back to MCU
– Detection of open load in off-state and short-toGND
Applications of TPS27SA08CPWPR
• Industrial Motor Drives
• Heating elements:
– Sensor element heaters
– Tank heaters
• High Current Digital Outputs
• Inductive Loads
Environmental & Export Classifications of TPS27SA08CPWPR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Affected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
