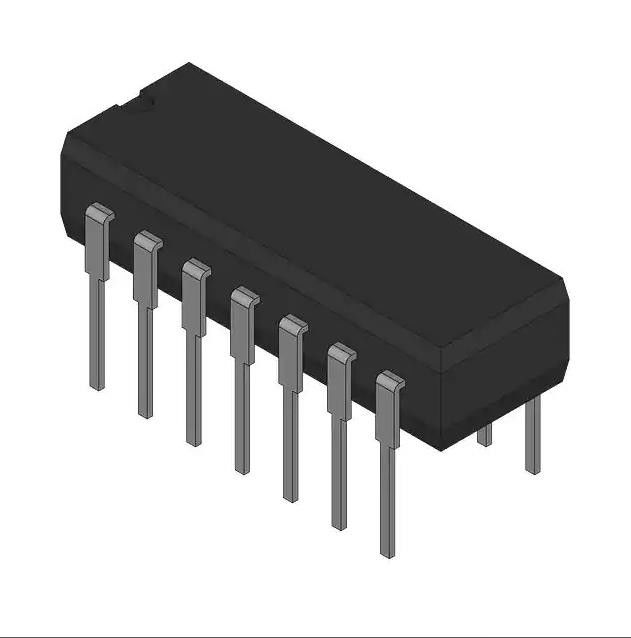

SNJ54HC393J Counter IC Element Bit DUAL 4-BIT BINARY COUNTE 5V
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | SNJ54HC393J |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Voltage Range: | 2 V To 6 V | Outputs: | 10 LSTTL Loads |
|---|---|---|---|
| Low Power Consumption: | 80-µA Max ICC | Typical Tpd: | 13 Ns |
| Low Input Current: | 1 µA Max | Supply Voltage Range, VCC: | −0.5 V To 7 V |
| Input Clamp Current, IIK: | ±20 MA | Storage Temperature Range, Tstg: | −65°C To 150°C |
Product Description
SNJ54HC393J Counter IC Element Bit DUAL 4-BIT BINARY COUNTE 5V
54HC393 DUAL 4-BIT BINARY COUNTE
Specifications of SNJ54HC393J
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Logic | |
| Counters, Dividers | |
| Mfr | Texas Instruments |
| Series | * |
| Package | Bulk |
| Product Status | Active |
| Base Product Number | 54HC393 |
Features of SNJ54HC393J
Wide Operating Voltage Range of 2 V to 6 V
Outputs Can Drive Up To 10 LSTTL Loads
Low Power Consumption, 80-µA Max ICC
Typical tpd = 13 ns
±4-mA Output Drive at 5 V
Low Input Current of 1 µA Max
Dual 4-Bit Binary Counters With Individual Clocks
Direct Clear for Each 4-Bit Counter
Can Significantly Improve System Densities by Reducing Counter Package Count by 50 Percent
Descriptions of SNJ54HC393J
The ’HC393 devices contain eight flip-flops and additional gating to implement two individual 4-bit
counters in a single package. These devices comprise two independent 4-bit binary counters,
each having a clear (CLR) and a clock (CLK) input. N-bit binary counters can be implemented
with each package, providing the capability of divide by 256. The ’HC393 devices have parallel
outputs from each counter stage so that any submultiple of the input count frequency is available for system timing signals.
Environmental & Export Classifications of SNJ54HC393J
| ATTRIBUTE | DESCRIPTION |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
