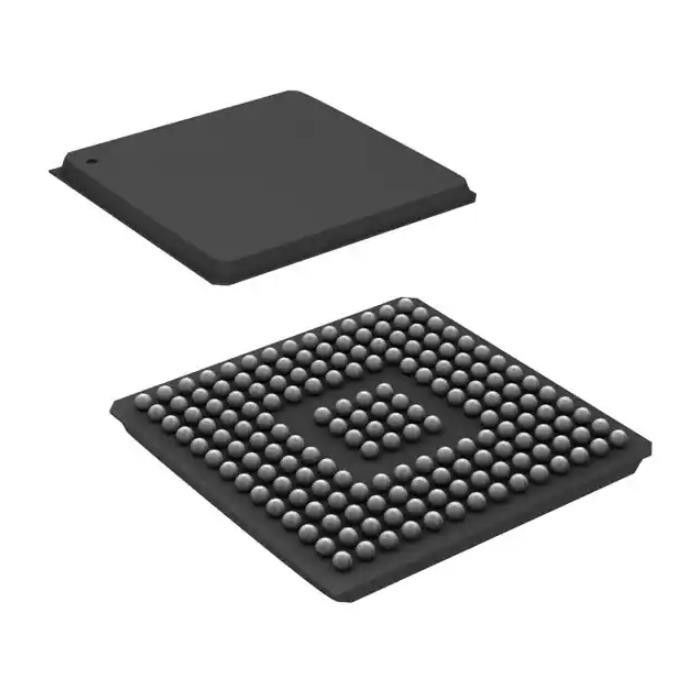

TMS320F28235ZJZQR Dip Ic Sockets Ic Mcu 32bit 512kb Flash 176bga
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TMS320F28235ZJZQR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| RAM Size: | 34K X 16 | Voltage - Supply (Vcc/Vdd): | 1.805V ~ 1.995V |
|---|---|---|---|
| Data Converters: | A/D 16x12b | Oscillator Type: | Internal |
| Operating Temperature: | -40°C ~ 125°C (TA) | Mounting Type: | Surface Mount |
| Package / Case: | 176-BGA | Supplier Device Package: | 176-BGA (15x15) |
Product Description
TMS320F28235ZJZQR Dip Ic Sockets Ic Mcu 32bit 512kb Flash 176bga
C28x Automotive, AEC-Q100, C2000™ C28x Delfino™ Microcontroller IC 32-Bit Single-Core 150MHz 512KB (256K x 16) FLASH 176-BGA (15x15)
Specifications of TMS320F28235ZJZQR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | Texas Instruments |
| Series | Automotive, AEC-Q100, C2000™ C28x Delfino™ |
| Package | Tape & Reel (TR) |
| Product Status | Active |
| Digi-Key Programmable | Not Verified |
| Core Processor | C28x |
| Core Size | 32-Bit Single-Core |
| Speed | 150MHz |
| Connectivity | CANbus, EBI/EMI, I²C, McBSP, SCI, SPI, UART/USART |
| Peripherals | DMA, POR, PWM, WDT |
| Number of I/O | 88 |
| Program Memory Size | 512KB (256K x 16) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 34K x 16 |
| Voltage - Supply (Vcc/Vdd) | 1.805V ~ 1.995V |
| Data Converters | A/D 16x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 176-BGA |
| Supplier Device Package | 176-BGA (15x15) |
| Base Product Number | TMS320 |
Features of TMS320F28235ZJZQR
• Six-channel DMA controller (for ADC, McBSP, ePWM, XINTF, and SARAM)
• 16-bit or 32-bit External Interface (XINTF)
– More than 2M × 16 address reach
• On-chip memory
– F28335, F28333, F28235: 256K × 16 flash, 34K × 16 SARAM
– F28334, F28234: 128K × 16 flash, 34K × 16 SARAM
– F28332, F28232: 64K × 16 flash, 26K × 16 SARAM
– 1K × 16 OTP ROM • Boot ROM (8K × 16)
– With software boot modes (through SCI, SPI, CAN, I2C, McBSP, XINTF, and parallel I/O)
– Standard math tables
• Clock and system control
– On-chip oscillator
– Watchdog timer module
Applications of TMS320F28235ZJZQR
• Advanced driver assistance systems (ADAS)
– Medium/short range radar
• Building automation
– HVAC motor control
– Traction inverter motor control
• Factory automation & control
– Automated sorting equipment
– CNC control
• Grid infrastructure
– Central inverter
– String inverter
• Hybrid, electric & powertrain systems
– Inverter & motor control
– On-board (OBC) & wireless charger
• Motor drives
– AC-input BLDC motor drive
– Servo drive control module
• Power delivery
– Industrial AC-DC
Environmental & Export Classifications of TMS320F28235ZJZQR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991A2 |
| HTSUS | 8542.31.0001 |
