TMS320DM6437ZWT6 600MHz DIP Socket IC 240kB 296-26852-5-ND
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TMS320DM6437ZWT6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Clock Rate: | 600MHz | Non-Volatile Memory: | ROM (64kB) |
|---|---|---|---|
| On-Chip RAM: | 240kB | Voltage - I/O: | 1.8V, 3.3V |
| Voltage - Core: | 1.05V, 1.20V | Operating Temperature: | 0°C ~ 90°C (TJ) |
| Mounting Type: | Surface Mount | Package / Case: | 361-LFBGA |
| High Light: | TMS320DM6437ZWT6,600MHz DIP Socket IC,DIP Socket IC 240kB |
||
Product Description
TMS320DM6437ZWT6 Dip Ic Sockets Tms320dm6437zwt6 296-26852-5-Nd

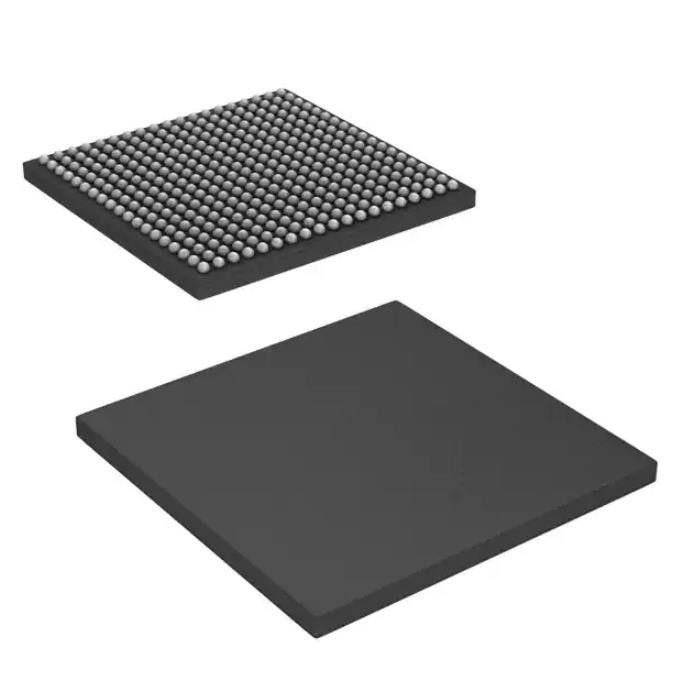

IC DGTL MEDIA PROCESSOR 361-BGA
Specifications of TMS320DM6437ZWT6
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| DSP (Digital Signal Processors) | |
| Mfr | Texas Instruments |
| Series | TMS320DM643x, DaVinci™ |
| Package | Tray |
| Product Status | Not For New Designs |
| Type | Fixed Point |
| Interface | HPI, I²C, McASP, McBSP, PCI, UART, 10/100 Ethernet MAC |
| Clock Rate | 600MHz |
| Non-Volatile Memory | ROM (64kB) |
| On-Chip RAM | 240kB |
| Voltage - I/O | 1.8V, 3.3V |
| Voltage - Core | 1.05V, 1.20V |
| Operating Temperature | 0°C ~ 90°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 361-LFBGA |
| Supplier Device Package | 361-NFBGA (16x16) |
| Base Product Number | TMS320 |
Features of TMS320DM6437ZWT6
• High-Performance Digital Media Processor (DM6437)
– 2.5-, 2.-, 1.67-, 1.51-, 1.43-ns Instruction Cycle Time
– 400-, 500-, 600, 660-, 700-MHz C64x+™ Clock Rate
– Eight 32-Bit C64x+ Instructions/Cycle
– 3200, 4000, 4800, 5280, 5600 MIPS
– Fully Software-Compatible With C64x
– Commercial and Automotive (Q or S suffix)
Grades
– Low-Power Device (L suffix)
• VelociTI.2™ Extensions to VelociTI™
Advanced Very-Long-Instruction-Word (VLIW)
TMS320C64x+™ DSP Core
– Eight Highly Independent Functional Units With VelociTI.2 Extensions:
• Six ALUs (32-/40-Bit), Each Supports
Single 32-Bit, Dual 16-Bit, or Quad 8-Bit
Arithmetic per Clock Cycle
• Two Multipliers Support Four 16 x 16-Bit Multiplies (32-Bit Results) per Clock Cycle or Eight 8 x 8-Bit Multiplies (16-Bit Results) per Clock Cycle
– Load-Store Architecture With Non-Aligned
Support
– 64 32-Bit General-Purpose Registers
– Instruction Packing Reduces Code Size
– All Instructions Conditional
– Additional C64x+™ Enhancements
• Protected Mode Operation
• Exceptions Support for Error Detection and Program Redirection
• Hardware Support for Modulo Loop Auto-Focus Module Operation
• C64x+ Instruction Set Features
– Byte-Addressable (8-/16-/32-/64-Bit Data)
– 8-Bit Overflow Protection
– Bit-Field Extract, Set, Clear
– Normalization, Saturation, Bit-Counting
– VelociTI.2 Increased Orthogonality
– C64x+ Extensions
• Compact 16-bit Instructions
• Additional Instructions to Support
Complex Multiplies
• C64x+ L1/L2 Memory Architecture
Applications of TMS320DM6437ZWT6
The TMS320C64x+™ DSPs (including the TMS320DM6437 device) are the highest-performance fixed-point DSP generation in the TMS320C6000™ DSP platform. The DM6437 device is based on the third-generation high-performance, advanced VelociTI™ very-long-instruction-word (VLIW) architecture developed by Texas Instruments (TI), making these DSPs an excellent choice for digital media applications. The C64x+™ devices are upward code-compatible from previous devices that are part of the C6000™ DSP platform. The C64x™ DSPs support added functionality and have an expanded instruction set from previous devices.
Environmental & Export Classifications of TMS320DM6437ZWT6
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 3A991A2 |
| HTSUS | 8542.31.0001 |
