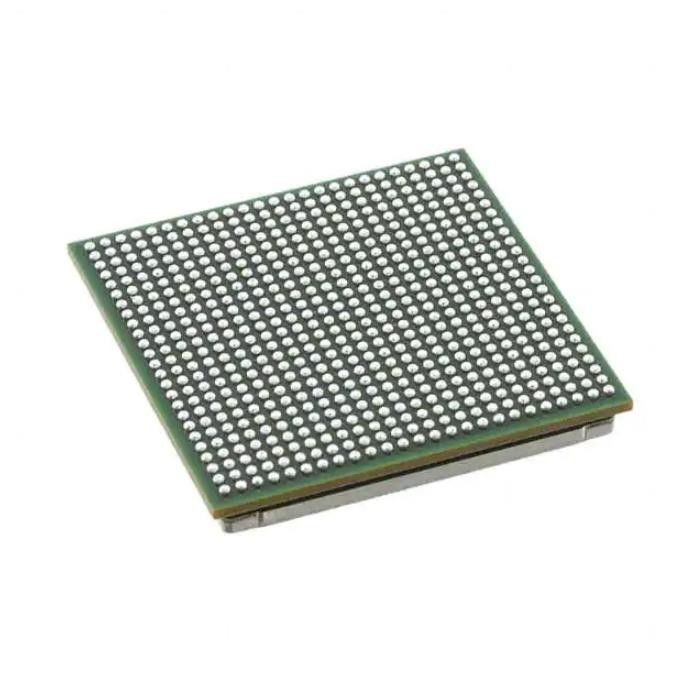

TMS320C6657CZH25 DIP IC SOCKET DSP FIX FLOAT POINT 625FCBGA
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TMS320C6657CZH25 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Clock Rate: | 1.25GHz | Non-Volatile Memory: | ROM (128kB) |
|---|---|---|---|
| On-Chip RAM: | 2.06MB | Voltage - I/O: | 1.0V, 1.5V, 1.8V |
| Voltage - Core: | 1.00V | Operating Temperature: | 0°C ~ 85°C (TC) |
| Mounting Type: | Surface Mount | Package / Case: | 625-BFBGA, FCBGA |
| High Light: | TMS320C6657CZH25,DIP IC SOCKET DSP,625FCBGA DIP IC SOCKET |
||
Product Description
TMS320C6657CZH25 Dip Ic Sockets Ic Dsp Fix/Float Point 625fcbga
TMS320C6657CZH25 Dip Ic Sockets Ic Dsp Fix/Float Point 625fcbga
IC DSP FIX/FLOAT POINT 625FCBGA 296-42838-ND
Specifications of TMS320C6657CZH25
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| DSP (Digital Signal Processors) | |
| Mfr | Texas Instruments |
| Series | TMS320C66x |
| Package | Tray |
| Product Status | Active |
| Type | Fixed/Floating Point |
| Interface | DDR3, EBI/EMI, Ethernet, McBSP, PCIe, I²C, SPI, UART, UPP |
| Clock Rate | 1.25GHz |
| Non-Volatile Memory | ROM (128kB) |
| On-Chip RAM | 2.06MB |
| Voltage - I/O | 1.0V, 1.5V, 1.8V |
| Voltage - Core | 1.00V |
| Operating Temperature | 0°C ~ 85°C (TC) |
| Mounting Type | Surface Mount |
| Package / Case | 625-BFBGA, FCBGA |
| Supplier Device Package | 625-FCBGA (21x21) |
| Base Product Number | TMS320 |
Features of TMS320C6657CZH25
• One (C6655) or Two (C6657) TMS320C66x™DSP Core Subsystems (CorePacs), Each With
– 850 MHz (C6657 only), 1.0 GHz, or 1.25 GHzC66x Fixed- and Floating-Point CPU Core
– 40 GMAC per Core for Fixed Point 1.25GHz
– 20 GFLOP per Core for Floating Point1.25 GHz
• Multicore Shared Memory Controller (MSMC)
– 1024KB MSM SRAM Memory(Shared by Two DSP C66x CorePacs forC6657)
– Memory Protection Unit for Both MSM SRAMand DDR3_EMIF
• Multicore Navigator
– 8192 Multipurpose Hardware Queues withQueue Manager
– Packet-Based DMA for Zero-Overhead
Transfers
• Hardware Accelerators
– Two Viterbi Coprocessors
– One Turbo Coprocessor Decoder
• Peripherals
– Four Lanes of SRIO 2.1
– 1.24, 2.5, 3.125, and 5 GBaud Operation
Supported Per Lane
– Supports Direct I/O, Message Passing
– Supports Four 1×, Two 2×, One 4×, and Two
1× + One 2× Link Configurations
– PCIe Gen2
– Single Port Supporting 1 or 2 Lane
Applications of TMS320C6657CZH25
• Power Protection Systems
• Avionics and Defense
• Currency Inspection and Machine Vision
• Medical Imaging
• Other Embedded Systems
• Industrial Transportation Systems
Environmental & Export Classifications of TMS320C6657CZH25
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 5A991B1 |
| HTSUS | 8542.31.0001 |
