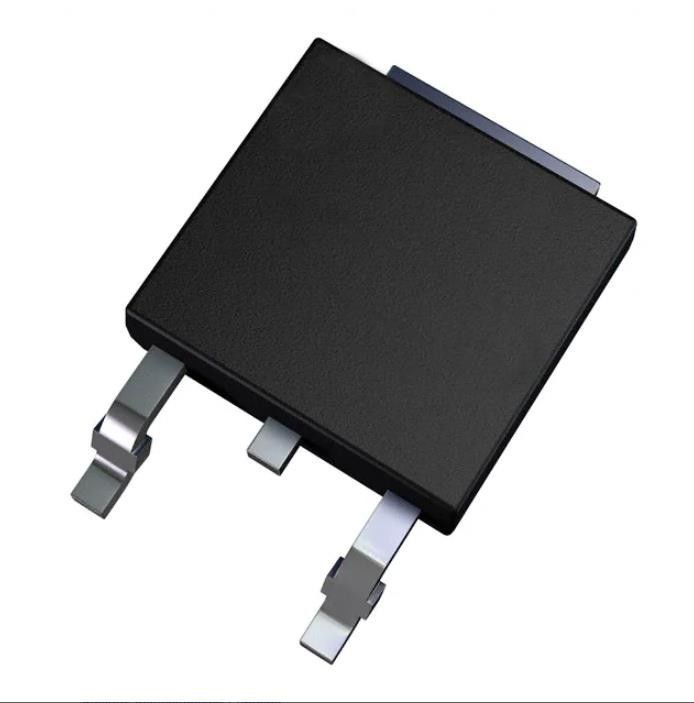

STPS15L60CB-TR Diode Array Schottky 60V DPAK 7.5A Surface Mount
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | STPS15L60CB-TR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Number Of I/O: | 16 | Program Memory Size: | 8KB (8K X 8) |
|---|---|---|---|
| Program Memory Type: | FLASH | EEPROM Size: | 640 X 8 |
| RAM Size: | 1K X 8 | Voltage - Supply (Vcc/Vdd): | 2.95V ~ 5.5V |
| Data Converters: | A/D 5x10b | Oscillator Type: | Internal |
| High Light: | STPS15L60CB-TR,Diode Array Schottky 60V,DPAK 7.5A Surface Mount |
||
Product Description
STPS15L60CB-TR Emmc Memory Chip Diode Array Schottky 60v Dpak
Diode Array 1 Pair Common Cathode 60 V 7.5A Surface Mount TO-252-3, DPak (2 Leads + Tab), SC-63
Specifications of STPS15L60CB-TR
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Diode Arrays | |
| Mfr | STMicroelectronics |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Diode Configuration | 1 Pair Common Cathode |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 60 V |
| Current - Average Rectified (Io) (per Diode) | 7.5A |
| Voltage - Forward (Vf) (Max) @ If | 620 mV @ 7.5 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 200 µA @ 60 V |
| Operating Temperature - Junction | 150°C (Max) |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | DPAK |
| Base Product Number | STPS15 |
Features of STPS15L60CB-TR
• Very small conduction losses
• Negligible switching losses
• Low forward voltage drop
• Avalanche specification
• ECOPACK®2 compliant component for DPAK on demand
Applications of STPS15L60CB-TR
Dual center tab Schottky rectifier suited for switched mode power supply and high frequency DC to DC converters. Packaged in DPAK, this device is intended for use in low voltage, high frequency inverters, freewheeling and polarity protection applications.
Environmental & Export Classifications of STPS15L60CB-TR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
