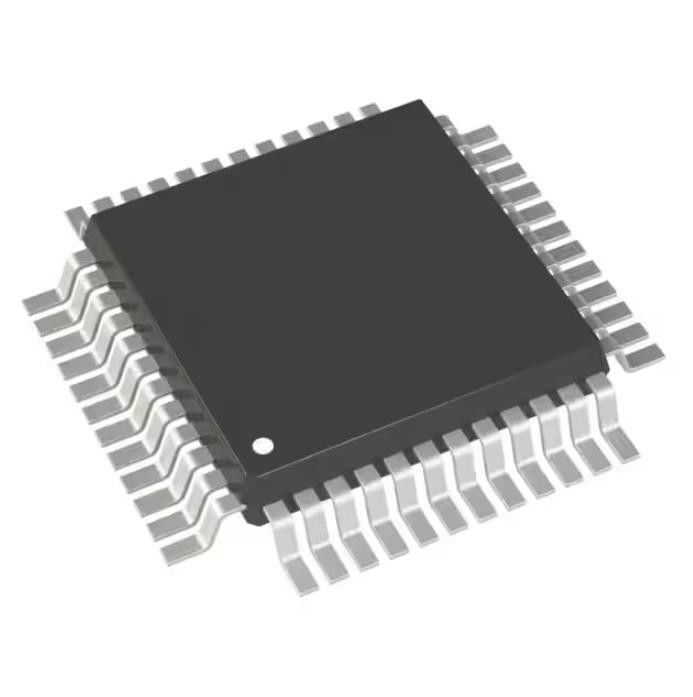

8BIT 32KB FLASH 32LQFP MCU IC Microcontroller STM8S005K6T6CTR
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | STM8S005K6T6CTR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Program Memory Type: | FLASH | EEPROM Size: | 128 X 8 |
|---|---|---|---|
| RAM Size: | 2K X 8 | Voltage - Supply (Vcc/Vdd): | 2.95V ~ 5.5V |
| Data Converters: | A/D 7x10b | Oscillator Type: | Internal |
| Operating Temperature: | -40°C ~ 85°C (TA) | Mounting Type: | Surface Mount |
| High Light: | 8BIT 32KB MCU IC,32LQFP MCU IC,STM8S005K6T6CTR |
||
Product Description
STM8S005K6T6CTR Emmc Memory Chip Ic Mcu 8bit 32kb Flash 32lqfp
STM8A STM8S Microcontroller IC 8-Bit 16MHz 32KB (32K x 8) FLASH 32-LQFP (7x7)
Specifications of STM8S005K6T6CTR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | STMicroelectronics |
| Series | STM8S |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Digi-Key Programmable | Not Verified |
| Core Processor | STM8A |
| Core Size | 8-Bit |
| Speed | 16MHz |
| Connectivity | I²C, IrDA, LINbus, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 25 |
| Program Memory Size | 32KB (32K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 128 x 8 |
| RAM Size | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.95V ~ 5.5V |
| Data Converters | A/D 7x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 32-LQFP |
| Supplier Device Package | 32-LQFP (7x7) |
| Base Product Number | STM8 |
Features of STM8S005K6T6CTR
Core
• Max fCPU: 16 MHz
• Advanced STM8 core with Harvard architecture and 3-stage pipeline
• Extended instruction set
Memories
• Medium-density Flash/EEPROM
– Program memory: 32 Kbytes of Flash memory; data retention 20 years at 55 °C after 100 cycles
– Data memory: 128 bytes true data EEPROM; endurance up to 100 k write/erase cycles
• RAM: 2 Kbytes Clock, reset and supply management
• 2.95 V to 5.5 operating voltage
• Flexible clock control, 4 master clock sources
– Low-power crystal resonator oscillator
– External clock input
– Internal, user-trimmable 16 MHz RC
– Internal low-power 128 kHz RC
• Clock security system with clock monitor
• Power management
– Low-power modes (wait, active-halt, halt)
– Switch-off peripheral clocks individually
– Permanently active, low-consumption power-on and power-down reset
Interrupt management
• Nested interrupt controller with 32 interrupts
• Up to 37 external interrupts on 6 vectors
Applications of STM8S005K6T6CTR
• Clock prescaler: To get the best compromise between speed and current consumption the clock frequency to the CPU and peripherals can be adjusted by a programmable prescaler.
• Safe clock switching: Clock sources can be changed safely on the flyin run mode through a configuration register. The clock signal is not switched until the new clock source is ready. The design guarantees glitch-free switching.
• Clock management: To reduce power consumption, the clock controller can stop the
clock to the core, individual peripherals or memory.
Environmental & Export Classifications of STM8S005K6T6CTR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.31.0001 |
