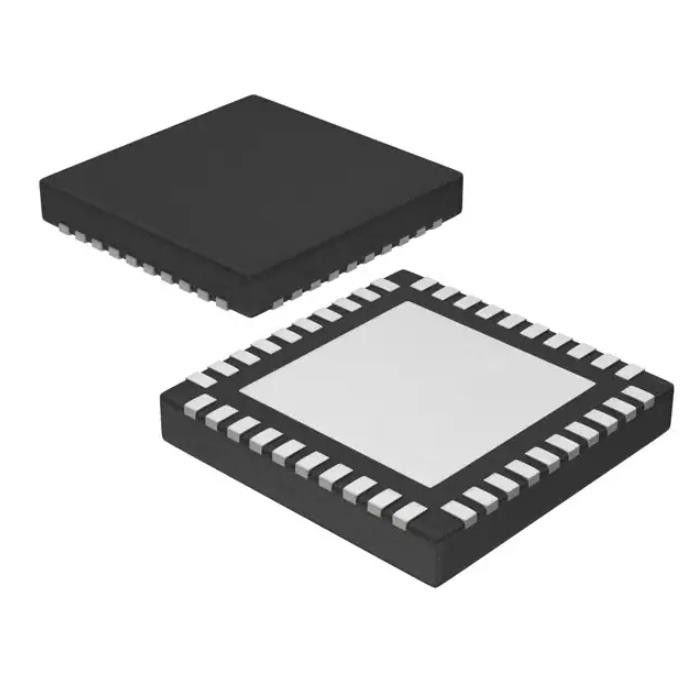

MSP430F2370IRHAR 40VQFN Microcontroller IC 16BIT 32KB FLASH
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | MSP430F2370IRHAR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Data Converters: | Slope A/D | Oscillator Type: | Internal |
|---|---|---|---|
| Operating Temperature: | -40°C ~ 85°C (TA) | Mounting Type: | Surface Mount |
| Package / Case: | 40-VFQFN Exposed Pad | Supplier Device Package: | 40-VQFN (6x6) |
| Base Product Number: | MSP430F2370 | ||
| High Light: | MSP430F2370IRHAR,40VQFN Microcontroller IC,Microcontroller IC 16BIT 32KB |
||
Product Description
MSP430F2370IRHAR Tvs Diode Smd Ic Mcu 16bit 32kb Flash 40vqfn
MSP430 CPU16 MSP430F2xx Microcontroller IC 16-Bit 16MHz 32KB (32K x 8 + 256B) FLASH 40-VQFN (6x6)
Specifications of MSP430F2370IRHAR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microcontrollers | |
| Mfr | Texas Instruments |
| Series | MSP430F2xx |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Digi-Key Programmable | Not Verified |
| Core Processor | MSP430 CPU16 |
| Core Size | 16-Bit |
| Speed | 16MHz |
| Connectivity | I²C, IrDA, LINbus, SCI, SPI, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 32 |
| Program Memory Size | 32KB (32K x 8 + 256B) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | Slope A/D |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 40-VFQFN Exposed Pad |
| Supplier Device Package | 40-VQFN (6x6) |
| Base Product Number | MSP430F2370 |
FEATURES of MSP430F2370IRHAR
• Low Supply Voltage Range: 1.8 V to 3.6 V
• Ultra-Low Power Consumption
• Active Mode: 270 µA at 1 MHz, 2.2 V
• Standby Mode: 0.7 µA
• Off Mode – Synchronous SPI (RAM Retention): 0.1 µA
• Ultra-Fast Wake-Up From Standby Mode in Less Than 1 µs
• 16-Bit RISC Architecture, 62.5-ns Instruction Cycle Time
• 16-Bit Timer_A With Three Capture/Compare Registers
Applications of MSP430F2370IRHAR
• Brownout Detector
• Bootstrap Loader
• On-Chip Emulation Module
• Family Members Include
Environmental & Export Classifications of MSP430F2370IRHAR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.31.0001 |
