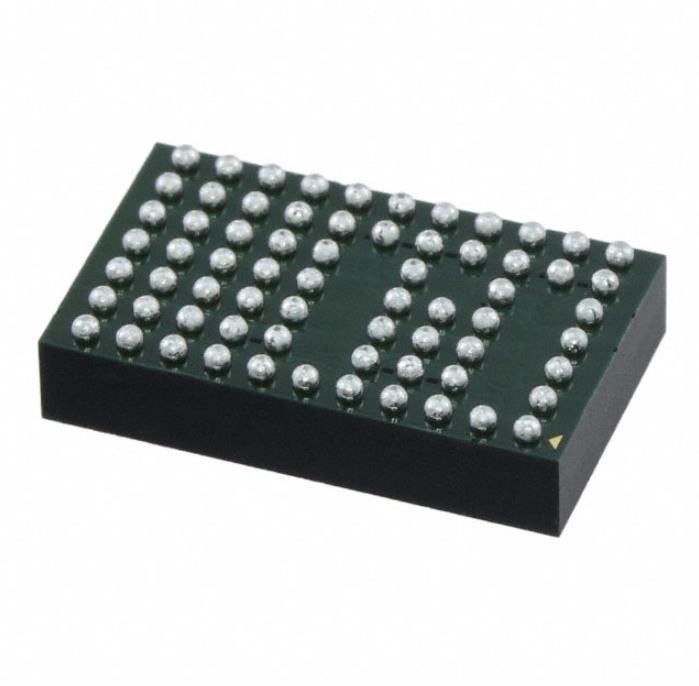

LTM4649IY#PBF Tvs Diode Smd DC DC CONVERTER 0.6-3.3V 33W LTM4649IY#PBF-ND
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LTM4649IY#PBF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Series: | µModule® | Package: | Tray |
|---|---|---|---|
| Product Status: | Active | Type: | Non-Isolated PoL Module |
| Number Of Outputs: | 1 | Voltage - Input (Min): | 4.5V |
| Voltage - Input (Max): | 16V | Voltage - Output 1: | 0.6 ~ 3.3V |
Product Description
LTM4649IY#PBF Tvs Diode Smd DC DC CONVERTER 0.6-3.3V 33W LTM4649IY#PBF-ND
Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 3.3V 10A 4.5V - 16V Input
Specifications of LTM4649IY#PBF
| TYPE | DESCRIPTION |
| Category | Power Supplies - Board Mount |
| DC DC Converters | |
| Mfr | Analog Devices Inc. |
| Series | µModule® |
| Package | Tray |
| Product Status | Active |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 16V |
| Voltage - Output 1 | 0.6 ~ 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Current - Output (Max) | 10A |
| Applications | ITE (Commercial) |
| Features | OCP, OVP |
| Operating Temperature | -40°C ~ 125°C |
| Efficiency | - |
| Mounting Type | Surface Mount |
| Package / Case | 68-BBGA Module |
| Size / Dimension | 0.59" L x 0.35" W x 0.19" H (15.0mm x 9.0mm x 4.9mm) |
| Supplier Device Package | 68-BGA (15x9) |
| Base Product Number | LTM4649 |
FEATURES of LTM4649IY#PBF
• 10A DC Output Current
• Input Voltage Range: 4.5V to 16V
• Output Voltage Range: 0.6V Up to 3.3V
• No Heat Sink or Current Derating Up to 85°C Ambient Temperature
• ±1.5% Total DC Voltage Output Error
• Multiphase Operation with Current Sharing
• Remote Sense Amplifier
• Built-In General Purpose Temperature Monitor
• Selectable Pulse-Skipping Mode/Burst Mode® Operation for High Efficiency at Light Load
• Soft-Start/Voltage Tracking
• Protection: Output Overvoltage and Overcurrent Foldback
• 9mm × 15mm × 4.92mm BGA Package
Applications of LTM4649IY#PBF
• Telecom, Networking and Industrial Equipment
• Point of Load Regulation
Environmental & Export Classifications of LTM4649IY#PBF
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
