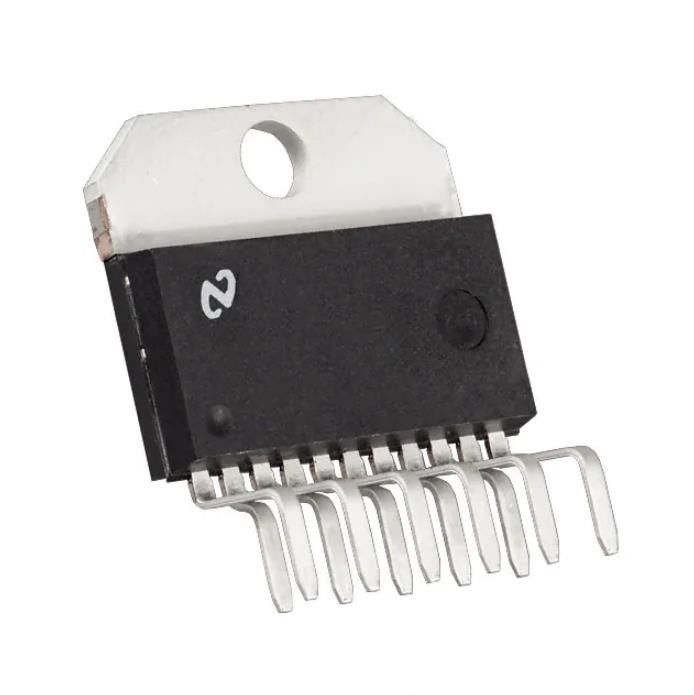

LM3886T/NOPB Amplifier IC AMP CLSS AB MONO 68W TO220-11
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM3886T/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Features: | Mute, Short-Circuit And Thermal Protection | Series: | Overture™ |
|---|---|---|---|
| Package: | Tube | Product Status: | Active |
| Type: | Class AB | Output Type: | 1-Channel (Mono) |
| Max Output Power X Channels @ Load: | 68W X 1 @ 4Ohm | Voltage - Supply: | 20V ~ 84V, ±10V ~ 42V |
| High Light: | LM3886T NOPB,NOPB Amplifier IC AMP,Amplifier IC AMP CLSS AB |
||
Product Description
LM3886T/NOPB General Purpose Relays Ic Amp Clss Ab Mono 68w To220-11
Amplifier IC 1-Channel (Mono) Class AB TO-220-11
Specifications of LM3886T/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Audio Amplifiers | |
| Mfr | Texas Instruments |
| Series | Overture™ |
| Package | Tube |
| Product Status | Active |
| Type | Class AB |
| Output Type | 1-Channel (Mono) |
| Max Output Power x Channels @ Load | 68W x 1 @ 4Ohm |
| Voltage - Supply | 20V ~ 84V, ±10V ~ 42V |
| Features | Mute, Short-Circuit and Thermal Protection |
| Mounting Type | Through Hole |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Supplier Device Package | TO-220-11 |
| Package / Case | TO-220-11 (Formed Leads) |
| Base Product Number | LM3886 |
FEATURES of LM3886T/NOPB
• 68W Cont. Avg. Output Power into 4Ω at VCC = ±28V
• 38W Cont. Avg. Output Power into 8Ω at VCC = ±28V
• 50W Cont. Avg. Output Power into 8Ω at VCC = ±35V
• 135W Instantaneous Peak Output Power Capability
• Signal-to-Noise Ratio ≥ 92dB
• An Input Mute Function
• Output Protection from a Short to Ground or to the Supplies via Internal Current Limiting Circuitry
• Output Over-Voltage Protection against Transients from Inductive Loads
• Supply Under-Voltage Protection, not Allowing Internal Biasing to Occur when |VEE| + |VCC| ≤ 12V, thus Eliminating Turn-On and Turn-Off Transients
• 11-Lead TO-220 Package
• Wide Supply Range 20V - 94V
Applications of LM3886T/NOPB
• Component stereo
• Compact stereo
• Self-powered speakers
• Surround-sound amplifiers
• High-end stereo TVs
Environmental & Export Classifications of LM3886T/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
