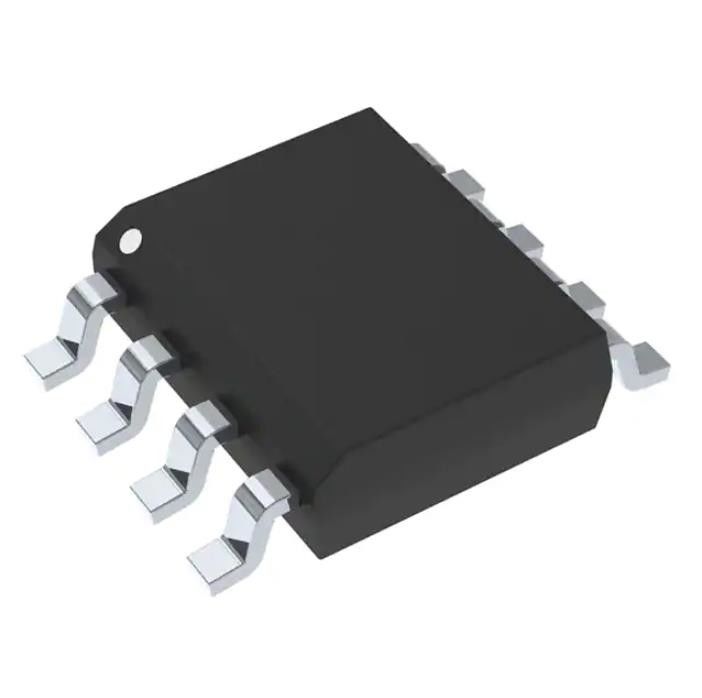

LM2904DR2G General Purpose Relays Ic Opamp Gp 2 Circuit 8soic
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM2904DR2G |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Gain Bandwidth Product: | 1 MHz | Current - Input Bias: | 45 NA |
|---|---|---|---|
| Voltage - Input Offset: | 2 MV | Current - Supply: | 800µA (x2 Channels) |
| Current - Output / Channel: | 40 MA | Voltage - Supply Span (Min): | 3 V |
| Voltage - Supply Span (Max): | 26 V | Operating Temperature: | -40°C ~ 85°C |
Product Description
LM2904DR2G General Purpose Relays Ic Opamp Gp 2 Circuit 8soic
General Purpose Amplifier 2 Circuit 8-SOIC
Specifications of LM2904DR2G
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Linear | |
| Amplifiers | |
| Instrumentation, OP Amps, Buffer Amps | |
| Mfr | onsemi |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Amplifier Type | General Purpose |
| Number of Circuits | 2 |
| Output Type | - |
| Slew Rate | - |
| Gain Bandwidth Product | 1 MHz |
| Current - Input Bias | 45 nA |
| Voltage - Input Offset | 2 mV |
| Current - Supply | 800µA (x2 Channels) |
| Current - Output / Channel | 40 mA |
| Voltage - Supply Span (Min) | 3 V |
| Voltage - Supply Span (Max) | 26 V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | LM2904 |
Features of LM2904DR2G
• Short Circuit Protected Outputs
• True Differential Input Stage
• Single Supply Operation: 3.0 V to 32 V
• Low Input Bias Currents
• Internally Compensated
• Common Mode Range Extends to Negative Supply
• Single and Split Supply Operation
• ESD Clamps on the Inputs Increase Ruggedness of the Device without Affecting Operation
• NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
application of LM2904DR2G
See detailed ordering and shipping information on page 10 of this data sheet.
Environmental & Export Classifications of LM2904DR2G
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.33.0001 |
