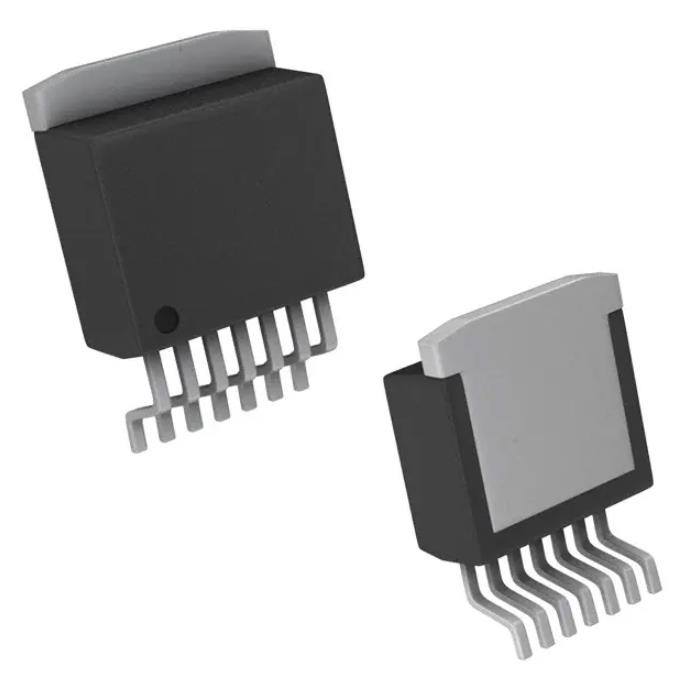

LM2676S-ADJ/NOPB General Purpose Relays Ic Reg Buck Adj 3a To263-7
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM2676S-ADJ/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Package: | Tube | Product Status: | Active |
|---|---|---|---|
| Function: | Step-Down | Output Configuration: | Positive |
| Topology: | Buck | Output Type: | Adjustable |
| Number Of Outputs: | 1 | Voltage - Input (Min): | 8V |
Product Description
LM2676S-ADJ/NOPB General Purpose Relays Ic Reg Buck Adj 3a To263-7
Buck Switching Regulator IC Positive Adjustable 1.2V 1 Output 3A TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
Specifications of LM2676S-ADJ/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | SIMPLE SWITCHER® |
| Package | Tube |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 8V |
| Voltage - Input (Max) | 40V |
| Voltage - Output (Min/Fixed) | 1.2V |
| Voltage - Output (Max) | 37V |
| Current - Output | 3A |
| Frequency - Switching | 260kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-8, D²Pak (7 Leads + Tab), TO-263CA |
| Supplier Device Package | DDPAK/TO-263-7 |
| Base Product Number | LM2676 |
Features of LM2676S-ADJ/NOPB
• New product available: LMR33630 36-V, 3-A, 400- kHz synchronous converter
• Efficiency up to 94%
• Simple and easy to design with (using off-the-shelf external components)
• 150-mΩ DMOS output switch
• 3.3-V, 5-V, 12-V Fixed output and adjustable (1.2 V to 37 V) versions
• 50-µA Standby current when switched OFF
• 2% Maximum output tolerance over full line and load conditions
• Wide input voltage range: 8 V to 40 V
• 260-KHz Fixed frequency internal oscillator
• –40 to 125°C Operating junction temperature range
application of LM2676S-ADJ/NOPB
• Communication module
• Electricity meter
• Calling button operating panel
• Motor drives
Environmental & Export Classifications of LM2676S-ADJ/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
