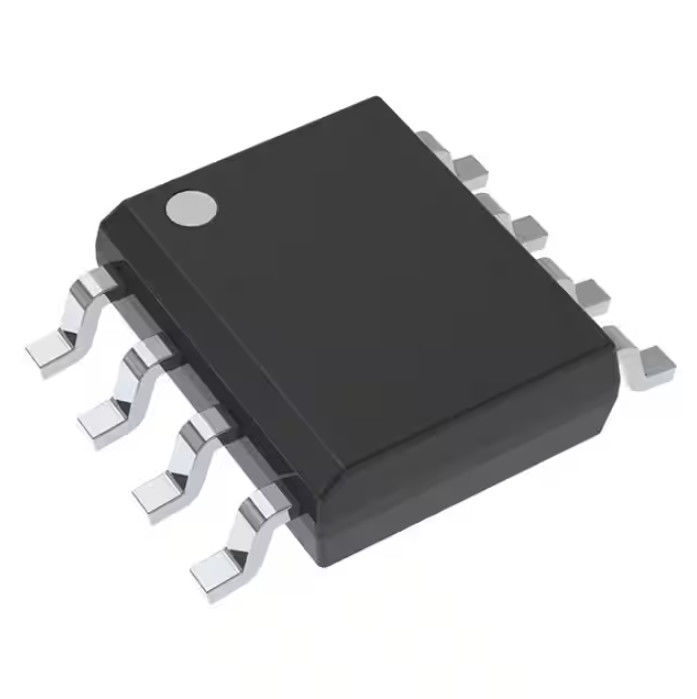

LM2594HVMX-5.0/NOPB General Purpose Relays Ic Reg Buck 5v 500ma 8soic
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | LM2594HVMX-5.0/NOPB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Function: | Step-Down |
|---|---|---|---|
| Output Configuration: | Positive | Topology: | Buck |
| Output Type: | Fixed | Number Of Outputs: | 1 |
| Voltage - Input (Min): | 4.5V | Voltage - Input (Max): | 60V |
Product Description
LM2594HVMX-5.0/NOPB General Purpose Relays Ic Reg Buck 5v 500ma 8soic
Buck Switching Regulator IC Positive Fixed 5V 1 Output 500mA 8-SOIC (0.154", 3.90mm Width)
Specifications of LM2594HVMX-5.0/NOPB
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | SIMPLE SWITCHER® |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Digi-Reel® | |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Fixed |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 60V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Current - Output | 500mA |
| Frequency - Switching | 150kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | LM2594 |
Features of LM2594HVMX-5.0/NOPB
• New product available: LMR36506 3-V to 65-V 0.6-A ultra-small synchronous buck converter
• 3.3-V, 5-V, 12-V, and adjustable output versions
• Adjustable version output voltage range: 1.2 V to 37 V (57-V for the HV version), 4% maximum over line and load conditions
• Available in 8-pin surface-mount SOIC and 8-pin PDIP packages
• Ensured 0.5-A output current
• Input voltage range up to 60 V
• Requires only four external components
• 150-kHz Fixed-frequency internal oscillator
• TTL shutdown capability
• Low power standby mode, IQ typically 85 μA
• High efficiency
• Uses readily-available standard inductors
• Thermal shutdown and current-limit protection
• Start WEBENCH design with LM2594HV
application of LM2594HVMX-5.0/NOPB
• Simple high-efficiency step-down (buck) regulator
• Efficient preregulator for linear regulators
• On-card switching regulators
• Positive-to-negative convertor
Environmental & Export Classifications of LM2594HVMX-5.0/NOPB
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
