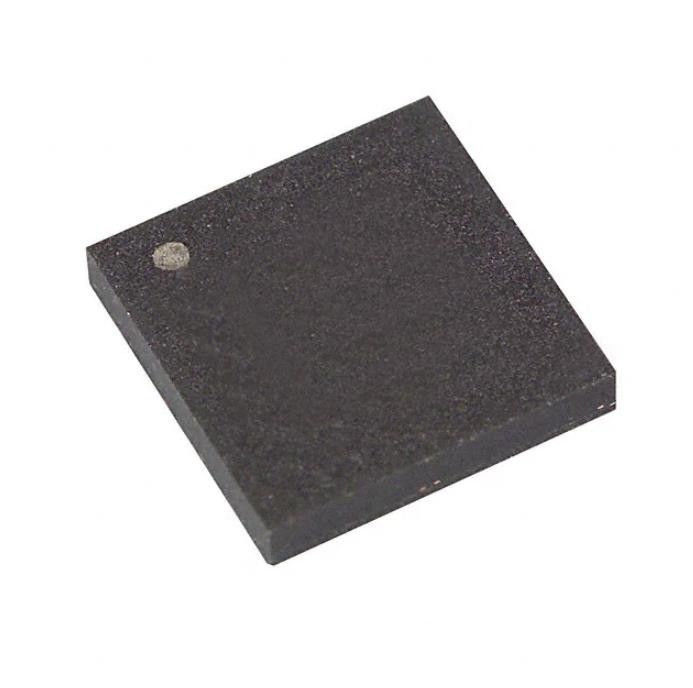

AT17LV010-10CU Emmc Memory Chip IC Srl Config Eeprom 1m 8-Lap
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | AT17LV010-10CU |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Package: | Tube | Product Status: | Active |
|---|---|---|---|
| Digi-Key Programmable: | Not Verified | Programmable Type: | Serial EEPROM |
| Memory Size: | 1Mb | Voltage - Supply: | 3V ~ 3.6V |
| Operating Temperature: | -40°C ~ 85°C | Mounting Type: | Surface Mount |
Product Description
AT17LV010-10CU Emmc Memory Chip IC Srl Config Eeprom 1m 8-Lap
AT17LV010-10CU-ND
Specifications of AT17LV010-10CU
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Memory | |
| Configuration Proms for FPGAs | |
| Mfr | Microchip Technology |
| Series | - |
| Package | Tube |
| Product Status | Active |
| Digi-Key Programmable | Not Verified |
| Programmable Type | Serial EEPROM |
| Memory Size | 1Mb |
| Voltage - Supply | 3V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-TDFN |
| Supplier Device Package | 8-LAP (6x6) |
| Base Product Number | AT17LV010 |
Features of AT17LV010-10CU
• EE Programmable Serial Memories Designed to Store Configuration Programs for Field Programmable Gate Arrays (FPGAs)
̶ 65,536 x 1-bit(1)
̶ 131,072 x 1-bit(1)
̶ 262,144 x 1-bit
̶ 524,288 x 1-bit
̶ 1,048,576 x 1-bit
̶ 2,097,152 x 1-bit
̶ 4,194,304 x 1-bit
• Supports both 3.3V and 5.0V Operating Voltage Applications
• In-System Programmable (ISP) via 2-wire Bus
• Simple Interface to SRAM FPGAs
• Compatible with the Atmel® AT6000, AT40K and AT94K Devices, Altera®
FLEX®, APEX™ Devices, ORCA®, Xilinx® XC3000, XC4000, XC5200, Spartan®, Virtex® FPGAs
• Cascadable Read-back to Support Additional Configurations or Higher-density Arrays
• Very Low-power CMOS EEPROM Process
• Programmable Reset Polarity
• Available in 6mm x 6mm x 1mm 8-lead LAP (Pin-compatible with 8-lead SOIC Package), 8-lead PDIP, 8-lead SOIC, 20-lead PLCC, 20-lead SOIC and 44-lead TQFP Packages
• Emulation of the Atmel AT24CXXX Serial EEPROMs
• Low-power Standby Mode
• High-reliability
̶ Endurance: 100,000 Write Cycles
̶ Data Retention: 90 Years for Industrial Parts (at 85C)
• Green (Pb/Halide-free/RoHS Compliant) Package Options Available
Applications of AT17LV010-10CU
The AT17LV FPGA Configuration EEPROMs (Configurators) provide an easy-touse, cost-effective configuration memory solution for Field Programmable Gate Arrays. The AT17LV devices are packaged in the 8-lead LAP, 8-lead PDIP, 8-lead SOIC, 20-lead PLCC, 20-lead SOIC and 44-lead TQFP options(Table 1). The AT17LV Configurators use a simple serial-access procedure to configure one or more FPGA devices. The user can select the polarity of the reset function during programming. These devices also support a write protection mechanism within its programming mode.
Environmental & Export Classifications of AT17LV010-10CU
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.32.0051 |
