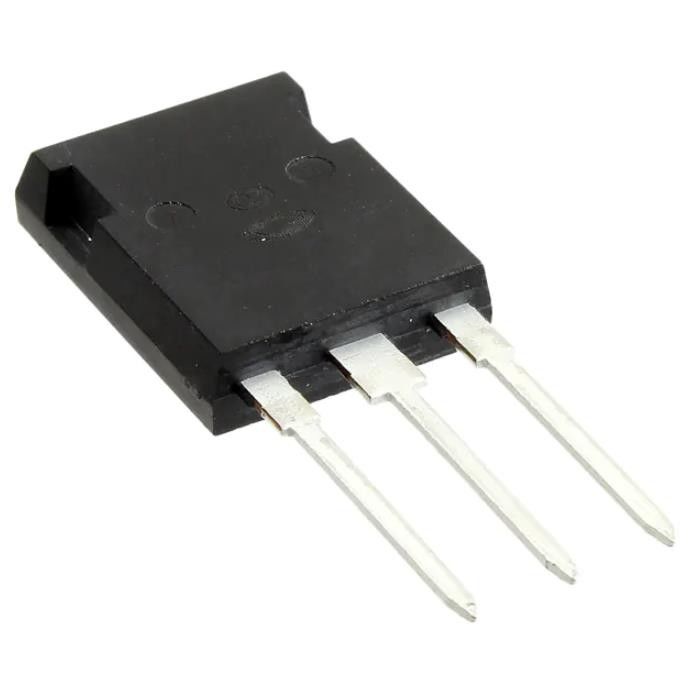

APT15DQ120BG Integrated Circuit Diode IC GP 1.2KV 15A TO247
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | APT15DQ120BG |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Package: | Tube | Product Status: | Active |
|---|---|---|---|
| Technology: | Standard | Voltage - DC Reverse (Vr) (Max): | 1200 V |
| Current - Average Rectified (Io): | 15A | Voltage - Forward (Vf) (Max) @ If: | 3.3 V @ 15 A |
| Speed: | Fast Recovery =< 500ns, > 200mA (Io) | Reverse Recovery Time (trr): | 240 Ns |
| High Light: | APT15DQ120BG Integrated Circuit,Diode IC Gp 1.2kv 15a To247,IC GP 1.2KV 15A TO247 |
||
Product Description
APT15DQ120BG Integrated Circuit IC Chip Diode Gp 1.2kv 15a To247
Diode 1200 V 15A Through Hole TO-247 [B]
Specifications of APT15DQ120BG
| TYPE | DESCRIPTION |
| Category | Discrete Semiconductor Products |
| Diodes | |
| Rectifiers | |
| Single Diodes | |
| Mfr | Microchip Technology |
| Series | - |
| Package | Tube |
| Product Status | Active |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Current - Average Rectified (Io) | 15A |
| Voltage - Forward (Vf) (Max) @ If | 3.3 V @ 15 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 240 ns |
| Current - Reverse Leakage @ Vr | 100 µA @ 1200 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247 [B] |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Base Product Number | APT15DQ120 |
Features of APT15DQ120BG
The following are key features of the APT15DQ120BG device.
• Ultrafast recovery times
• Soft recovery characteristics
• Low forward voltage
• Low leakage current
• Avalanche energy rated
• RoHS compliant
• AEC-Q101 qualified
Applications of APT15DQ120BG
The APT15DQ120BG device is designed for thefollowing applications.
• Power factor correction (PFC)
• Anti-parallel diode
• Switch-mode power supply
• Inverters/converters
• Freewheeling diode
• Inverters/converters
• Motor controllers
• Snubber/clamp diode
Environmental & Export Classifications of APT15DQ120BG
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.10.0080 |
