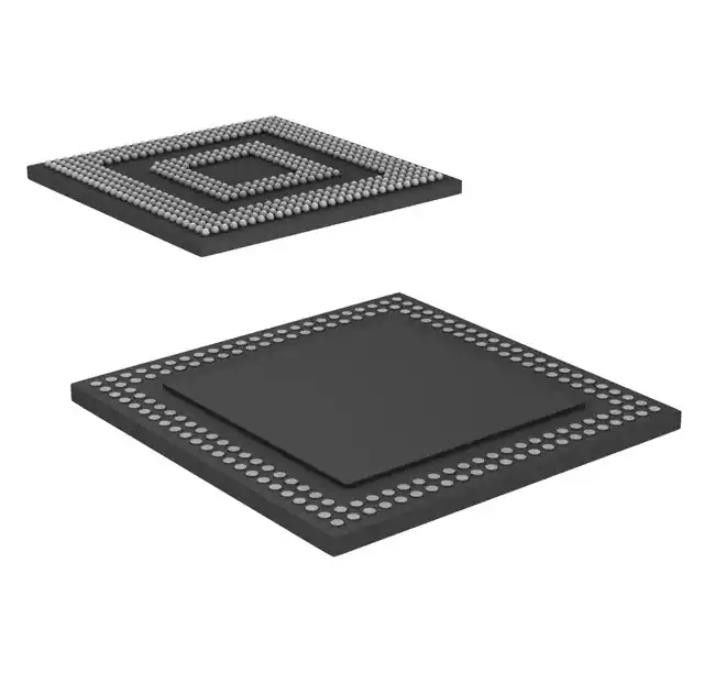

AM3703CBP Integrated Circuit IC Chip Mpu Sitara 800mhz 515fcbga
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | AM3703CBP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Mfr: | Texas Instruments | Series: | Sitara™ |
|---|---|---|---|
| Package: | Tray | Product Status: | Not For New Designs |
| Core Processor: | ARM® Cortex®-A8 | Number Of Cores/Bus Width: | 1 Core, 32-Bit |
| Speed: | 800MHz | Co-Processors/DSP: | Multimedia; NEON™ SIMD |
Product Description
AM3703CBP Integrated Circuit IC Chip Mpu Sitara 800mhz 515fcbga
ARM® Cortex®-A8 Microprocessor IC Sitara™ 1 Core, 32-Bit 800MHz 515-POP-FCBGA (12x12)
Specifications of AM3703CBP
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Embedded | |
| Microprocessors | |
| Mfr | Texas Instruments |
| Series | Sitara™ |
| Package | Tray |
| Product Status | Not For New Designs |
| Core Processor | ARM® Cortex®-A8 |
| Number of Cores/Bus Width | 1 Core, 32-Bit |
| Speed | 800MHz |
| Co-Processors/DSP | Multimedia; NEON™ SIMD |
| RAM Controllers | SDRAM |
| Graphics Acceleration | No |
| Display & Interface Controllers | LCD |
| Ethernet | - |
| SATA | - |
| USB | USB 2.0 (4) |
| Voltage - I/O | 1.8V |
| Operating Temperature | 0°C ~ 90°C (TJ) |
| Security Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 515-WFBGA, FCBGA |
| Supplier Device Package | 515-POP-FCBGA (12x12) |
| Additional Interfaces | HDQ/1-Wire, I²C, McBSP, McSPI, MMC/SD/SDIO, UART |
| Base Product Number | AM3703 |
Features of AM3703CBP
• AM3715/03 Sitara ARM Microprocessors:
– Compatible with OMAP™ 3 Architecture
– Sitara™ ARM® Microprocessor (MPU) Subsystem
• Up to 1-GHz Sitara™ ARM® Cortex™-A8 Core Also supports 300, 600, and 800-MHz operation
• NEON™ SIMD Coprocessor
– POWERVR SGX™ Graphics Accelerator (AM3715 only)
• Tile Based Architecture Delivering up to 20 MPoly/sec
• Universal Scalable Shader Engine: Multi-threaded Engine Incorporating Pixel and Vertex Shader Functionality
• Industry Standard API Support: OpenGLES 1.1 and 2.0, OpenVG1.0
• Fine Grained Task Switching, Load Balancing, and Power Management
• Programmable High Quality Image Anti-Aliasing
– External Memory Interfaces:
• SDRAM Controller (SDRC)
– 16, 32-bit Memory Controller With 1G-Byte Total Address Space
– Interfaces to Low-Power SDRAM
– SDRAM Memory Scheduler (SMS) and Rotation Engine
• General Purpose Memory Controller (GPMC)
– 16-bit Wide Multiplexed Address/Data Bus
– Up to 8 Chip Select Pins With 128M-Byte Address Space per Chip Select Pin
– Glueless Interface to NOR Flash, NAND Flash (With ECC Hamming Code Calculation), SRAM andPseudo-SRAM
– Flexible Asynchronous Protocol Control for Interface to Custom Logic (FPGA, CPLD, ASICs, etc.)
– Nonmultiplexed Address/Data Mode (Limited 2K-Byte Address Space)
– 1.8-V I/O and 3.0-V (MMC1 only), 0.9-V to 1.2-V Adaptive Processor Core Voltage 0.9-V to 1.1-V Adaptive Core Logic Voltage Note: These are default Operating Performance Point (OPP) voltages and could be optimized to lower values using SmartReflex AVS.
– Commercial, Industrial, and Extended Temperature Grades
– Serial Communication
• 5 Multichannel Buffered Serial Ports (McBSPs)
– 512 Byte Transmit/Receive Buffer (McBSP1/3/4/5)
– 5K-Byte Transmit/Receive Buffer (McBSP2)
– SIDETONE Core Support (McBSP2 and
3 Only) For Filter, Gain, and Mix Operations
– Direct Interface to I2S and PCM Device and T Buses
– 128 Channel Transmit/Receive Mode
• Four Master/Slave Multichannel Serial Port Interface (McSPI) Ports
• High-Speed/Full-Speed/Low-Speed USB OTG Subsystem (12-/8-Pin ULPI Interface)
• High-Speed/Full-Speed/Low-Speed Multiport USB Host Subsystem
– 12-/8-Pin ULPI Interface or 6-/4-/3-Pin Serial Interface
• One HDQ/1-Wire Interface
• Four UARTs (One with Infrared Data Association [IrDA] and Consumer Infrared [CIR] Modes)
Applications of AM3703CBP
This balance of performance and power allow the device to support the following example applications:
• Portable Data Terminals
• Navigation
• Auto Infotainment
• Gaming
• Medical Imaging
• Home Automation
• Human Machine Interface
• Industrial Control
• Test and Measurement
• Single-board Computer
Environmental & Export Classifications of AM3703CBP
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| REACH Status | REACH Unaffected |
| ECCN | 5A992C |
| HTSUS | 8542.31.0001 |
