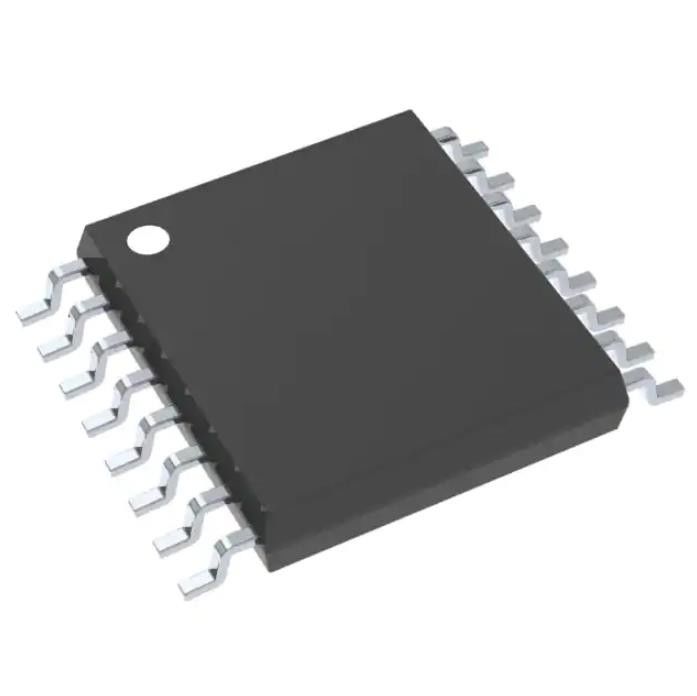

ADC128S022CIMT Temperature Sensor Chip Adc 12 Bit Sar 16TSSOP
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | ADC128S022CIMT |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Package: | Tube | Product Status: | Obsolete |
|---|---|---|---|
| Number Of Bits: | 12 | Sampling Rate (Per Second): | 200k |
| Number Of Inputs: | 8 | Input Type: | Single Ended |
| Data Interface: | SPI, DSP | Configuration: | MUX-S/H-ADC |
| High Light: | ADC128S022CIMT,Adc 12 Bit Sar 16TSSOP,16TSSOP Temperature Sensor Chip |
||
Product Description
ADC128S022CIMT Integrated Circuits IC Chip Adc 12bit Sar 16tssop
12 Bit Analog to Digital Converter 8 Input 1 SAR 16-TSSOP
Specifications of ADC128S022CIMT
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Data Acquisition | |
| Analog to Digital Converters (ADC) | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tube |
| Product Status | Obsolete |
| Number of Bits | 12 |
| Sampling Rate (Per Second) | 200k |
| Number of Inputs | 8 |
| Input Type | Single Ended |
| Data Interface | SPI, DSP |
| Configuration | MUX-S/H-ADC |
| Ratio - S/H:ADC | 1:01 |
| Number of A/D Converters | 1 |
| Architecture | SAR |
| Reference Type | Supply |
| Voltage - Supply, Analog | 2.7V ~ 5.25V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Features | - |
| Operating Temperature | -40°C ~ 105°C |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 16-TSSOP |
| Mounting Type | Surface Mount |
| Base Product Number | ADC128 |
Features of ADC128S022CIMT
• Resolution: 8 Bits
• Total Unadjusted Error: ±½ LSB and ±1 LSB
• Single Supply: 5 VDC
• Low Power: 15 mW
• Conversion Time: 100 μs
• SPI™ /QSPI™/MICROWIRE/DSP Compatible
• Packaged in 16-lead TSSOP
• Conversion Rate: 50 ksps to 200ksps
• DNL (VA VD 5 V): +1 / −0.7 LSB (Maximum)
• INL (VA VD 5 V): 1 LSB (Maximum)
• Power Consumption
– 3V Supply: 1.2 mW (Typical)
– 5V Supply: 7.5 mW (Typical)
Applications of ADC128S022CIMT
• Automotive Navigation
• Portable Systems
• Medical Instruments
• Mobile Communications
• Instrumentation and Control Systems
Environmental & Export Classifications of ADC128S022CIMT
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | RoHS non-compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
