8A 18VQFN TPS568215RNNR Buck Switching Regulator IC Reg Buck Adj Fix
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS568215RNNR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Configuration: | Positive | Topology: | Buck |
|---|---|---|---|
| Output Type: | Adjustable (Fixed) | Number Of Outputs: | 1 |
| Voltage - Input (Min): | 4.5V | Voltage - Input (Max): | 17V |
| Voltage - Output (Min/Fixed): | 0.6V | Voltage - Output (Max): | 5.5V |
| High Light: | 8A 18VQFN TPS568215RNNR,8A 18VQFN Buck Switching Regulator IC,18VQFN TPS568215RNNR |
||
Product Description

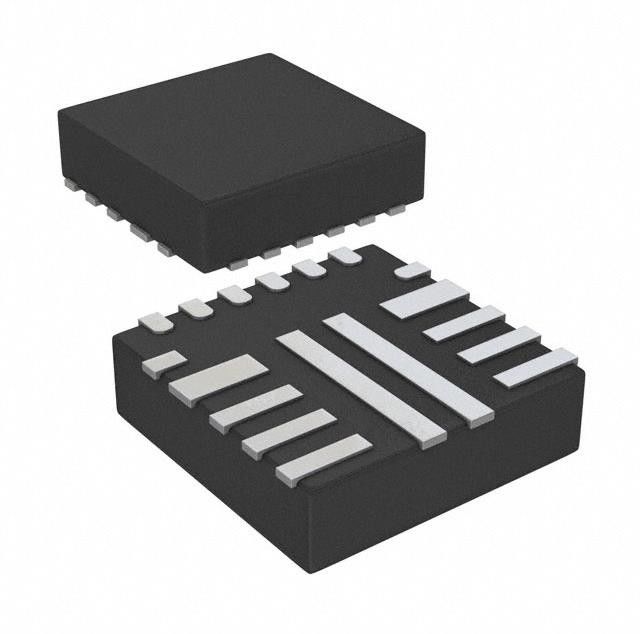

TPS568215RNNR Buck Switching Regulator IC Reg Buck Adj/Fix 8a 18vqfn
Buck Switching Regulator IC Positive Adjustable (Fixed) 0.6V 1 Output 8A 18-VFQFN
Specifications of TPS568215RNNR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable (Fixed) |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 17V |
| Voltage - Output (Min/Fixed) | 0.6V |
| Voltage - Output (Max) | 5.5V |
| Current - Output | 8A |
| Frequency - Switching | Up to 1.2MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 150°C (TJ)) |
| Mounting Type | Surface Mount |
| Package / Case | 18-VFQFN |
| Supplier Device Package | 18-VQFN-HR (3.5x3.5) |
| Base Product Number | TPS568215 |
Features of TPS568215RNNR
• Integrated 19-mΩ and 9.4-mΩ MOSFETs
• Selectable FSW of 400 kHz, 800 kHz and 1.2 MHz
• Adjustable Current Limit Settings with Hiccup Restart
• 0.6 V 1% Reference Voltage Across Full Temperature Range
• Optional External 5-V Bias Support for Enhanced Efficiency
• D-CAP3™ Control Mode for Fast Transient Response
• Selectable Forced Continuous Conduction Mode (FCCM) for Tight Output Voltage Ripple or AutoSkipping Eco-mode™ for High Light-Load Efficiency
• 0.6 V to 5.5 V Output Voltage Range
• Supports Ceramic Output Capacitors
• Monotonic Startup into Pre-biased Outputs
• Adjustable Soft Start with a Default 1-ms Soft Start Time
• –40°C to 150°C Operating Junction Temperature
• Small 3.5-mm x 3.5-mm HotRod™ QFN Package
• Supported at the WEBENCH® Design Center
Applications of TPS568215RNNR
• Server and Storage
• Set top Box, High-End DTV
Environmental & Export Classifications of TPS568215RNNR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
