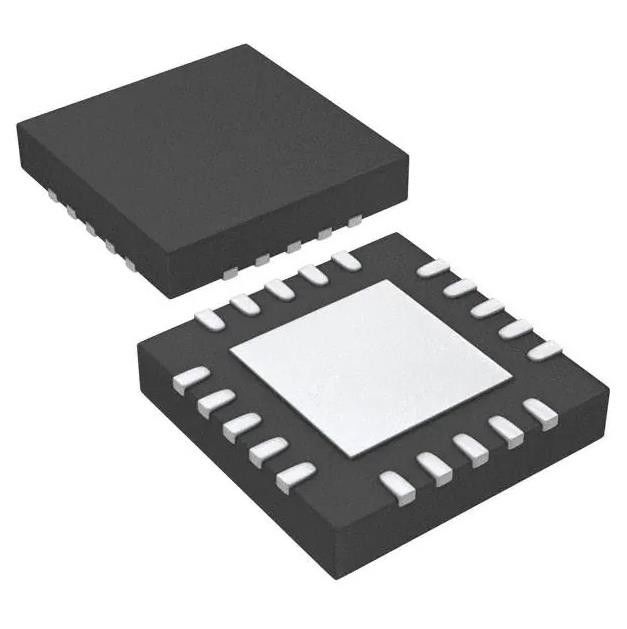

TPS7A8300RGWR IC Reg Linear Pos Adj 2a 20vqfn Linear Voltage Regulator
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS7A8300RGWR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Output Configuration: | Positive | Output Type: | Adjustable/Programmable |
|---|---|---|---|
| Number Of Regulators: | 1 | Voltage - Input (Max): | 6.5V |
| Voltage - Output (Min/Fixed): | 0.8V | Voltage - Output (Max): | 0.2V @ 2A |
| Current - Output: | 2A | ||
Product Description
TPS7A8300RGWR IC Reg Linear Pos Adj 2a 20vqfn Linear Voltage Regulator
Linear Voltage Regulator IC Positive Adjustable/Programmable 1 Output 2A 20-VQFN (5x5)
Specifications of TPS7A8300RGWR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - Linear | |
| Mfr | Texas Instruments |
| Series | - |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Adjustable/Programmable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6.5V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 5V |
| Voltage Dropout (Max) | 0.2V @ 2A |
| Current - Output | 2A |
| Current - Quiescent (Iq) | 4 mA |
| Current - Supply (Max) | 5 mA |
| PSRR | 40dB (1MHz) |
| Control Features | Enable, Power Good, Soft Start |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 20-VQFN Exposed Pad |
| Supplier Device Package | 20-VQFN (5x5) |
| Base Product Number | TPS7A8300 |
Features of TPS7A8300RGWR
• Ultralow Dropout:125mV Maximum at 2 A
• Output Voltage Noise:6 μVRMs
• Power-Supply Ripple Rejection:
- 40 dB at 1 MHz Input Voltage Range:
- Without BIAS:1.4 V to 6.5 V
- With BIAS: 1.1 V to 6.5 V Two Output Voltage Modes:
- ANY-OUTTM Version (User-Programmable
Output via PCB Layout):
- No External Resistor Required
- Output Voltage Range:0.8 V to 3.95 V
- Adjustable Version:
- Output Voltage Range:0.8 V to 5.0 V
1.0% Accuracy Over Line,Load,and Temperature
• Stable with a 22-uF Output Ceramic Capacitor
• Programmable Soft-Start Output
• Power-Good (PG) Output
• Available Packages:
- 5-mm×5-mm VQFN-20
- 3.5-mm×3.5-mm VQFN-20
Applications of TPS7A8300RGWR
• RF,IF Components:VCO,ADC,DAC,LVDS
• Wireless Infrastructure: SerDes, FPGA, DSPTM
• Test and Measurement
• Instrumentation, Medical, and Audio
Environmental & Export Classifications of TPS7A8300RGWR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
