TPS563200DDCR IC Reg Buck Adj 3a Tsot23-6 Buck Regulator Ic
Product Details:
| Place of Origin: | original |
| Brand Name: | original |
| Certification: | original |
| Model Number: | TPS563200DDCR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Product Status: | Active | Function: | Step-Down |
|---|---|---|---|
| Output Configuration: | Positive | Topology: | Buck |
| Output Type: | Adjustable | Number Of Outputs: | 1 |
| Voltage - Input (Min): | 4.5V | Voltage - Input (Max): | 17V |
| High Light: | TPS563200DDCR IC,IC Reg Buck Adj 3a Tsot23-6,TPS563200DDCR Buck Regulator Ic |
||
Product Description

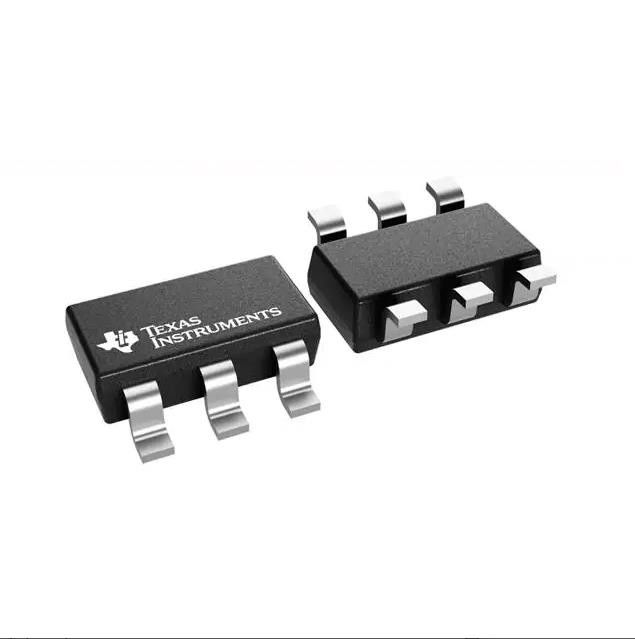

TPS563200DDCR IC Reg Buck Adj 3a Tsot23-6 Buck Switching Regulator
|
Buck Switching Regulator IC Positive Adjustable 0.76V 1 Output 3A SOT-23-6 Thin, TSOT-23-6
|
Specifications of TPS563200DDCR
| TYPE | DESCRIPTION |
| Category | Integrated Circuits (ICs) |
| Power Management (PMIC) | |
| Voltage Regulators - DC DC Switching Regulators | |
| Mfr | Texas Instruments |
| Series | D-CAP2™, Eco-Mode™ |
| Package | Tape & Reel (TR) |
| Cut Tape (CT) | |
| Product Status | Active |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 17V |
| Voltage - Output (Min/Fixed) | 0.76V |
| Voltage - Output (Max) | 7V |
| Current - Output | 3A |
| Frequency - Switching | 650kHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Supplier Device Package | SOT-23-THIN |
| Base Product Number | TPS563200 |
Features of TPS563200DDCR
• TPS562200 - 2A converter with Integrated 122 mΩ and 72 mΩ FETs
• TPS563200 - 3A converter with Integrated 68 mΩ and 39 mΩ FETs
• D-CAP2™ Mode Control for Fast Transient Response
• Input Voltage Range: 4.5 V to 17 V
• Output Voltage Range: 0.76 V to 7 V
• 650 kHz Switching Frequency
• Advanced Eco-mode™ Pulse-skip
• Low Shutdown Current Less than 10 µA
• 1% Feedback Voltage Accuracy (25°C)
• Startup from Pre-Biased Output Voltage
• Cycle-By-Cycle Overcurrent Limit
• Hiccup-Mode Undervoltage Protection
• Non-latch OVP, UVLO and TSD Protections
• Fixed Soft Start: 1 ms
• Create a Custom Design with WEBENCH Tools
Applications of TPS563200DDCR
• Digital TV Power Supply
• High Definition Blu-ray Disc™ Players
• Networking Home Terminal
• Digital Set Top Box (STB)
Environmental & Export Classifications of TPS563200DDCR
| ATTRIBUTE | DESCRIPTION |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8542.39.0001 |
