ZXMS6004FFTA IC PWR DRIVER N-CHAN 1:1 SOT23F 1.3A 60V SOT-23F
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | ZXMS6004FFTA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part Number: | ZXMS6004FFTA | Number Of Outputs: | 1 |
|---|---|---|---|
| Ratio - Input:Output: | 1:1 | Voltage - Load: | 60V (Max) |
| Voltage - Supply (Vcc/Vdd): | 3.3V, 5V | Current - Output (Max): | 1.3A |
Product Description

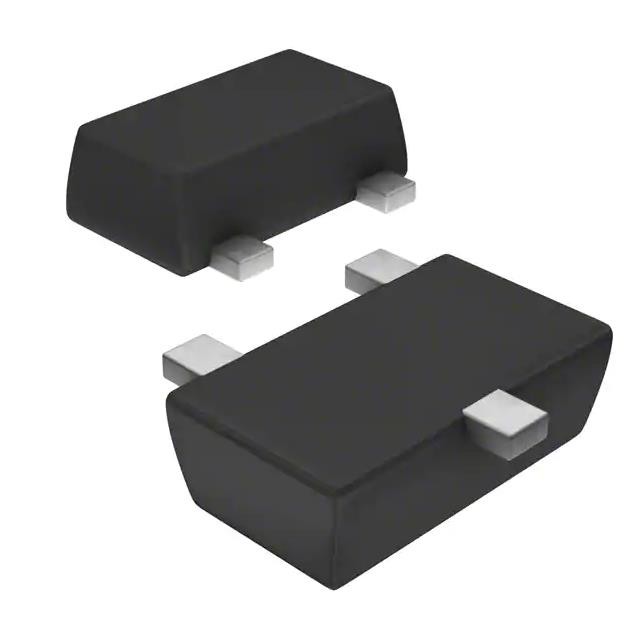

ZXMS6004FFTA IC PWR DRIVER N-CHAN 1:1 SOT23F 1.3A 60V SOT-23F
Power Switch/Driver 1:1 N-Channel 1.3A SOT-23F
Features of ZXMS6004FFTA
Compact High Power Dissipation Package
Low Input Current
Logic Level Input (3.3V and 5V)
Short Circuit Protection with Auto Restart
Over Voltage Protection (Active Clamp)
Thermal Shutdown with Auto Restart
Overcurrent Protection
Input Protection (ESD)
High Continuous Current Rating
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Specifications of ZXMS6004FFTA
|
Series
|
Automotive, AEC-Q101, INTELLIFET®
|
|
Product
|
ZXMS6004FFTA |
|
Switch Type
|
General Purpose
|
|
Number of Outputs
|
1
|
|
Ratio - Input:Output
|
1:1
|
|
Output Configuration
|
Low Side
|
|
Output Type
|
N-Channel
|
|
Interface
|
On/Off
|
|
Voltage - Load
|
60V (Max)
|
|
Voltage - Supply (Vcc/Vdd)
|
3.3V, 5V
|
|
Current - Output (Max)
|
1.3A
|
|
Rds On (Typ)
|
350mOhm
|
|
Input Type
|
Non-Inverting
|
|
Features
|
Auto Restart
|
|
Fault Protection
|
Current Limiting (Fixed), Over Temperature, Over Voltage
|
|
Operating Temperature
|
-40°C ~ 150°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Supplier Device Package
|
SOT-23F
|
|
Package / Case
|
SOT-23-3 Flat Leads
|
|
Base Product Number
|
ZXMS6004
|
Environmental & Export Classifications
| ATTRIBUTE | DESCRIPTION |
|---|---|
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
Applications of ZXMS6004FFTA
Especially suited for loads with a high in-rush current such as
lamps and motors
All types of resistive, inductive and capacitive loads in switching
applications
μC compatible power switches for 12V and 24V DC applications
Automotive rated
Replaces electromechanical relays and discrete circuits
Linear mode capabilities – the current-limiting protection circuitry
is designed to de-activate at low VDS to minimize on state power
dissipation. The maximum DC operating current is therefore
determined by the thermal capability of the package/board
combination, rather than by the protection circuitry. This does not
compromise the product’s ability to self-protect at low VDS.
