ZJYS51R5-2PT-012 Power Switch ICs 200 Ohms @ 100 MHz 2A DCR 120mOhm
Product Details:
| Place of Origin: | Original |
| Brand Name: | Original |
| Certification: | Original |
| Model Number: | ZJYS51R5-2PT-01 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | negotiation |
| Packaging Details: | carton box |
| Delivery Time: | 1-3working days |
| Payment Terms: | T/T |
| Supply Ability: | 100,000 |
|
Detail Information |
|||
| Part Number: | ZJYS51R5-2PT-01 | Number Of Lines: | 2 |
|---|---|---|---|
| Current Rating (Max): | 2A | Voltage Rating - DC: | 50V |
| Operating Temperature: | -25°C ~ 85°C | Impedance @ Frequency: | 200 Ohms @ 100 MHz |
Product Description

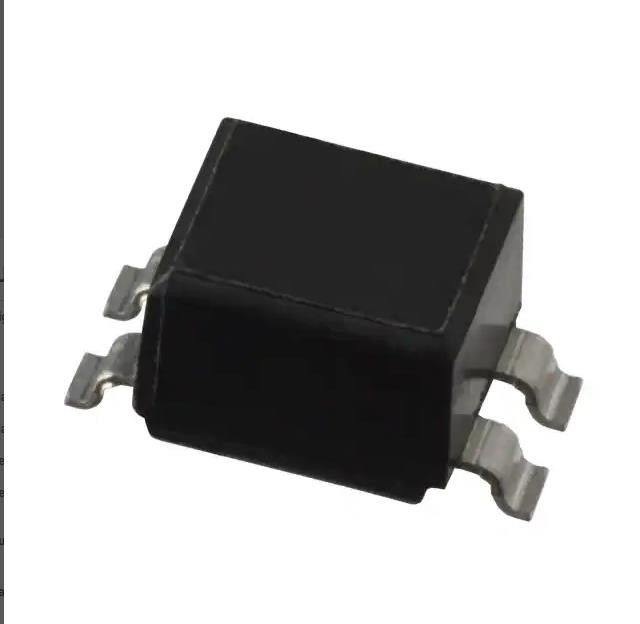

ZJYS51R5-2PT-012 Power Switch ICs 200 Ohms @ 100 MHz 2A DCR 120mOhm
2 Line Common Mode Choke Surface Mount 200 Ohms @ 100 MHz 2A DCR 120mOhm
Features of ZJYS51R5-2PT-01
Optimal common mode filter for removing noise without straining the transmission signal and for transmitting high-quality signals.
Optimal countermeasure for common mode noise induced during data transmission for digital signal processing such as in PCs and
telephones.
SMD type structure makes it optimal for surface mounting.
Up to 2A current is allowable, so it can be used as a noise countermeasure for power supply lines.
Specifications of ZJYS51R5-2PT-01
|
Mfr
|
Toshiba Semiconductor and Storage
|
|
Series
|
U-MOSVIII-H
|
|
Product
|
TPH2R306NH1,LQ
|
|
FET Type
|
N-Channel
|
| Package | Tape & Reel |
|
Technology
|
MOSFET (Metal Oxide)
|
|
Drain to Source Voltage (Vdss)
|
60 V
|
|
Current - Continuous Drain (Id) @ 25°C
|
136A (Tc)
|
|
Drive Voltage (Max Rds On, Min Rds On)
|
6.5V, 10V
|
|
Rds On (Max) @ Id, Vgs
|
2.3mOhm @ 50A, 10V
|
|
Vgs(th) (Max) @ Id
|
4V @ 1mA
|
|
Gate Charge (Qg) (Max) @ Vgs
|
72 nC @ 10 V
|
|
Vgs (Max)
|
±20V
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
6100 pF @ 30 V
|
|
FET Feature
|
-
|
|
Power Dissipation (Max)
|
800mW (Ta), 170W (Tc)
|
|
Operating Temperature
|
150°C
|
|
Mounting Type
|
Surface Mount
|
|
Supplier Device Package
|
8-SOP Advance (5x5.75)
|
|
Package / Case
|
8-PowerTDFN
|
Environmental & Export Classifications
| ATTRIBUTE | DESCRIPTION |
|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
Applications of ZJYS51R5-2PT-01
PCs, telephones, LANs, ISDNs, digital PBXs, game machines, CTVs, CD-ROMs, 8mm video cassette recorders, etc.
